Product Overview

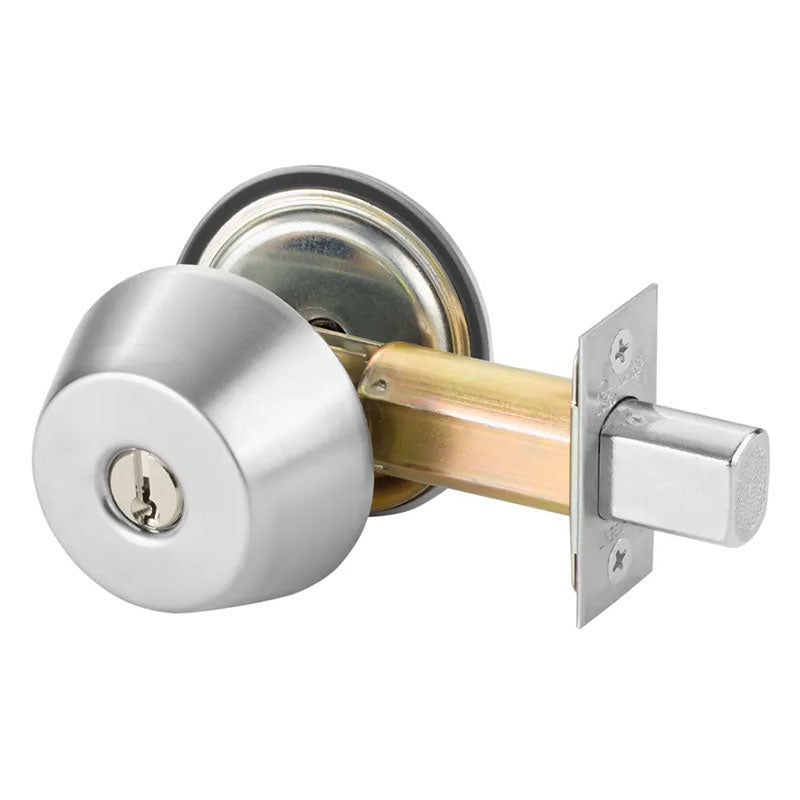

Sargent 485 Single Cylinder Deadbolt, 2-3/4" Backset
Ideally suited for heavy-duty industrial and security applications, the 480 Series is a high-grade cylindrical deadbolt that is certified to ANSI/BHMA A156.36 Grade 1 standards.
ANSI E0151 Single Cylinder Deadlock
- Key outside operates deadbolt

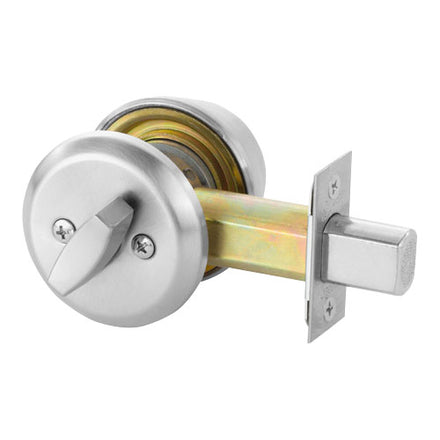

- Thumbturn inside operates deadbolt
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP - Black Suede Powder Coat, WSP - White Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent |
| ANSI/BHMA Standard |
A156.36 Certified Grade 1 |
| Usage |
Heavy Duty |
| ANSI Function |
E0151 |
| Deadbolt Type |
Single Cylinder |
| Cylinder & Keys |
6-pin conventional, keyed different, with 2 keys |
| Keyway |
Sargent LA Keyway |
| Bolt |
1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
| Backset |
2-3/4" |
| Strike |
1-1/8” x 2-3/4“ square corner |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
