Corbin Russwin

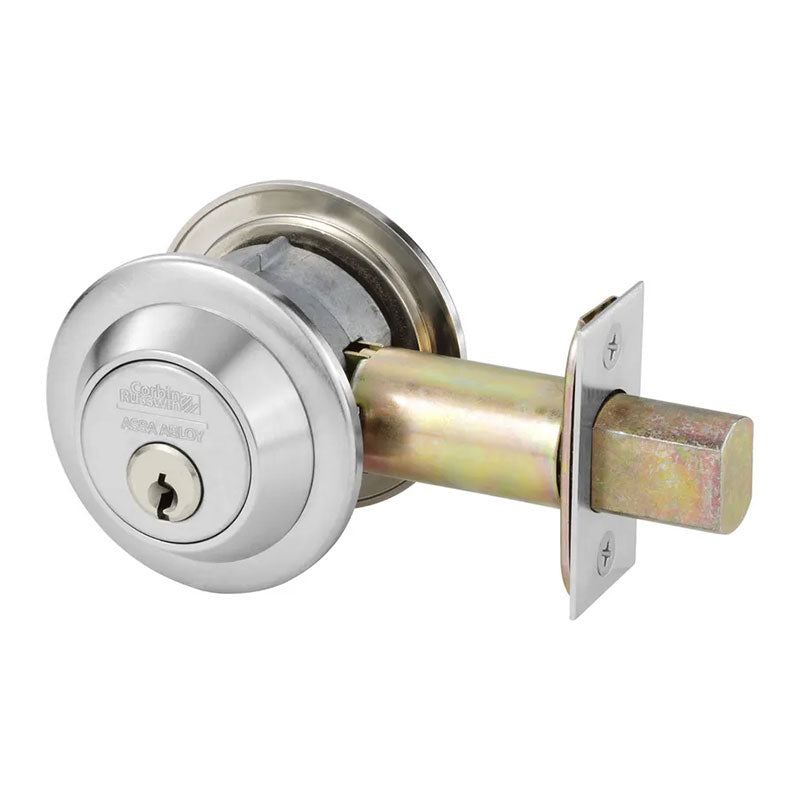

Corbin Russwin DL3013 Single Cylinder Deadbolt

$221.55
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.36 Certified Grade 2
  • Single Cylinder x Inside Turn
  • UL-cUL Fire-Rated Up to 3 Hours

Available Options:

Clear

Product Overview

Corbin Russwin DL3013 Single Cylinder Deadbolt, Grade-2, 2-3/4" Backset

The DL3000 Series is a strong, reliable deadbolt for standard application

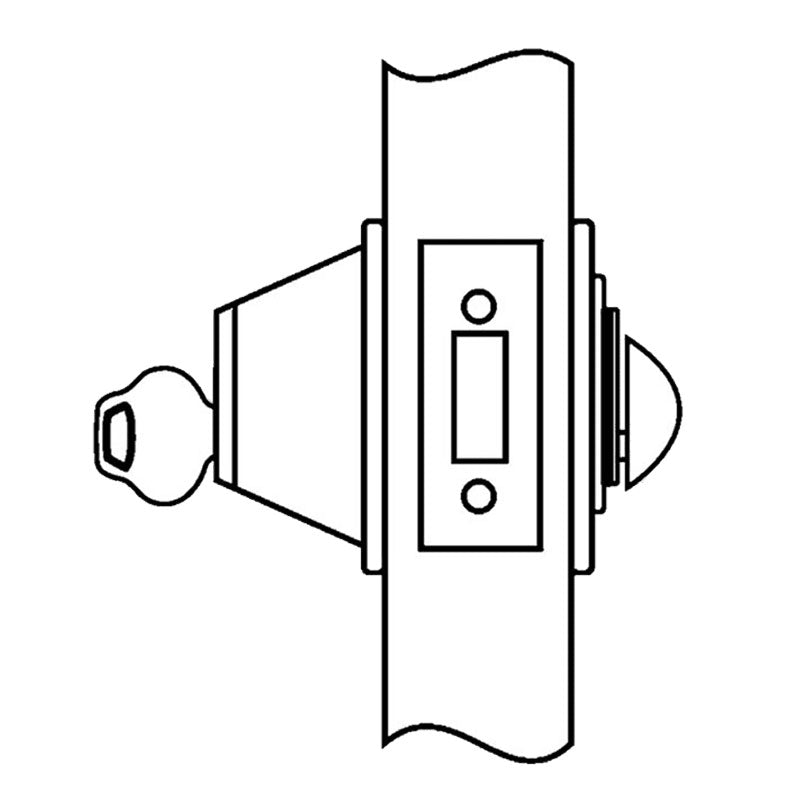

ANSI E0151 Single Cylinder Deadlock

  • By key outside and by thumbturn inside
Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP - Black Suede Powder Coat, WSP - White Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

ANSI/BHMA Standard

A156.36 Certified Grade 2

Usage

Medium Duty

ANSI Function

E0151

Deadbolt Type

Single Cylinder

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Corbin Russwin L4 Keyway

Bolt

Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

Fire Rated - UL10C - Positive Pressure
