Schlage B572 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator

$117.65
Usually Ships:  1-2 Business Days
  • Ideal for commercial restroom doors
  • Door bolt occupancy indicator x inside turn
  • ADA compliant thumbturn

Available Options:

Clear

Product Overview

Schlage B572 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, Adjustable 2-3/8" and 2-3/4" Backset

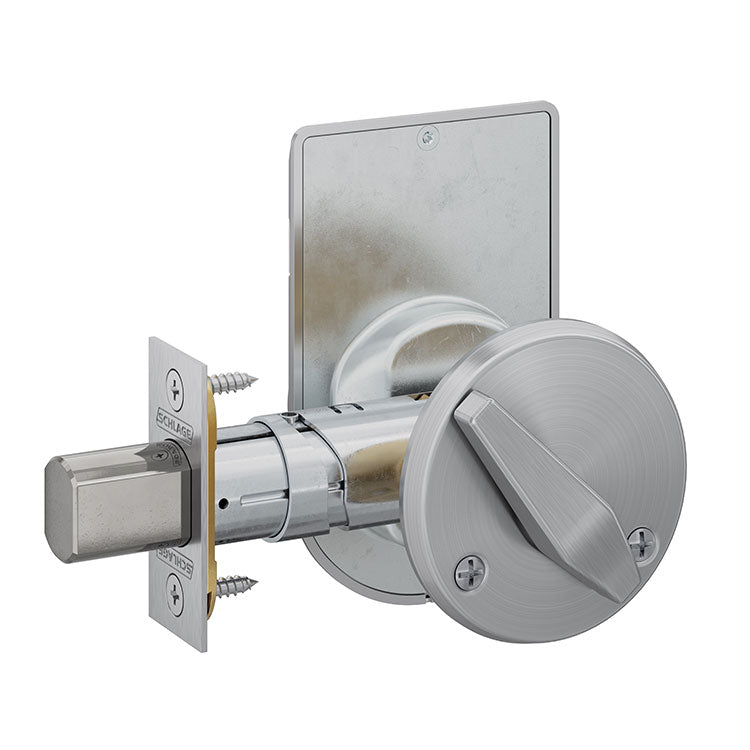

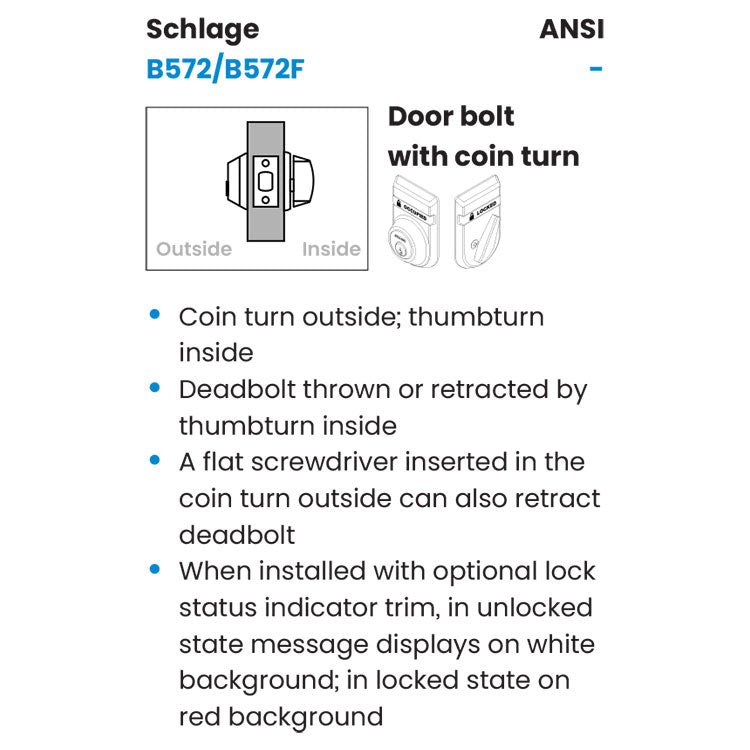

Coin turn outside; thumbturn inside • Deadbolt thrown or retracted by thumbturn inside • A flat screwdriver inserted in the coin turn outside can also retract deadbolt • When installed with lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • Perfect for commercial restroom doors

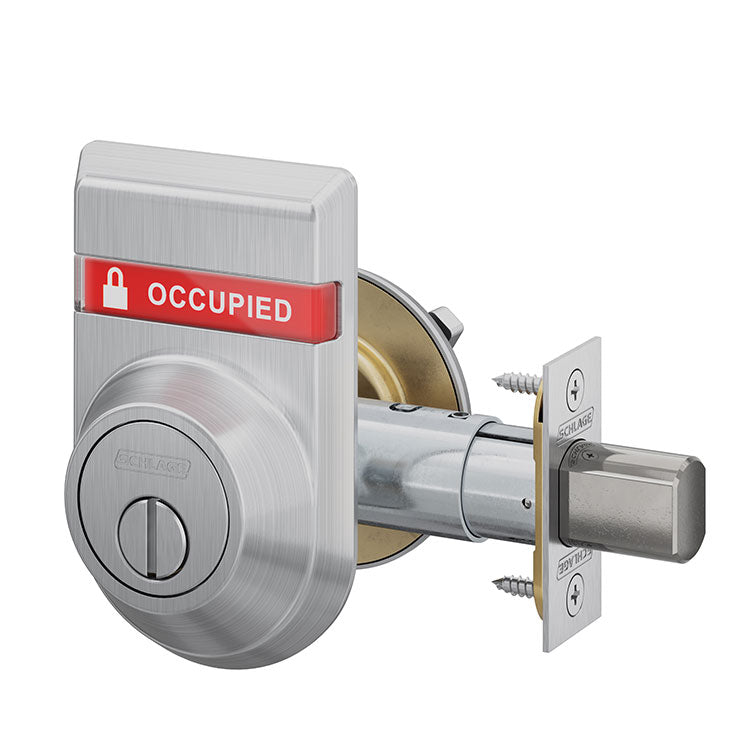

  • Outside indicator displays “Occupied” or “Vacant”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • Adjustable for 2-3/8" or 2-3/4" backset
  • Can be installed using the same standard door prep as any B Series lock
  • 3-year limited mechanical warranty
Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 626AM Satin Chrome Antimicrobial, 609 Antique Brass

Deadbolt Type

Indicator

ANSI/BHMA Standard

ANSI A156.36, Grade 2

ANSI Grade

ANSI Grade 2

Usage

Medium Duty

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/8” x 2-3/4“ square corner

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Door Thickness

1-3/4" to 1-7/8”

Fire-Rating

None

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
