Schlage

Schlage B660B Single Cylinder Deadbolt, Less Small Format Interchangeable Core

$174.77
Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI Function E0151
  • Single Cylinder x Inside Turn
  • Prepped for (SFIC) Small Format Interchangeable Core (Less Core)

Available Options:

Clear

Product Overview

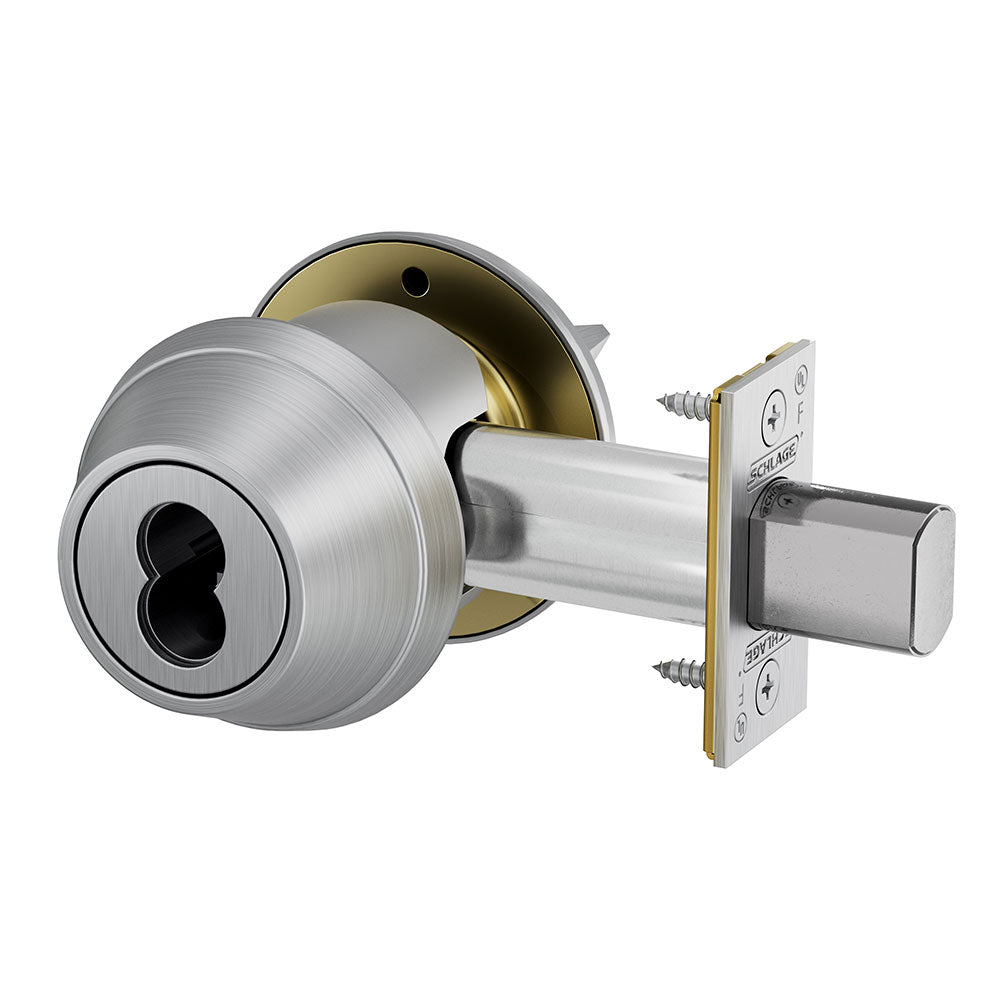

Schlage B660B Single Cylinder Deadbolt, 2-3/4" Backset, SFIC Prep, Less Core

Schlage’s toughest and highest grade heavy-duty Grade 1 commercial deadbolt. Choose the B660 for Grade 1 security in high-traffic commercial applications.

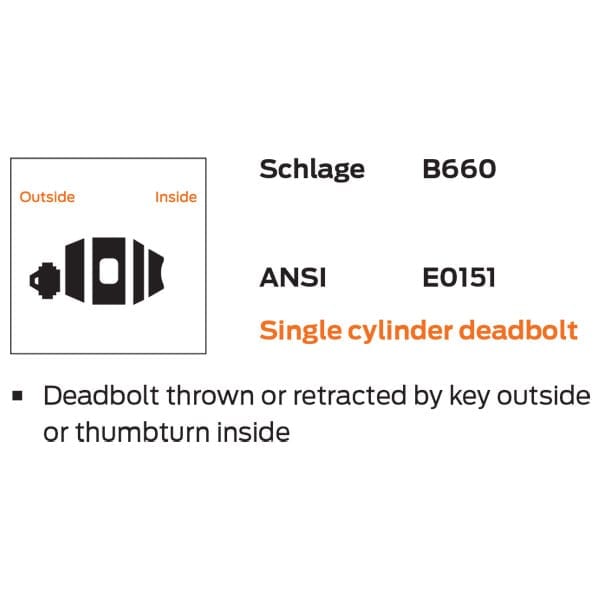

ANSI Function E0151: Deadbolt thrown or retracted by key outside or thumbturn inside

  • SFIC Core Sold Separately
  • 1" throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Metal shield protects bolt from ice-pick attack through the door
  • Hardened steel ball-bearings protect mounting bolts from drill attack
Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 609 Antique Brass

Deadbolt Type

Single Cylinder

ANSI Function

E0151

ANSI/BHMA Standard

ANSI A156.36, Grade 1. When installed with FSIC cylinder, Grade 2; SFIC cylinder, Grade 3.

Usage

Heavy Duty

Cylinder

Small Format Interchangeable Core (SFIC) Cylinder (Less Core)

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/4" to 2"

Warranty

3 Year
