Schlage

Schlage B560J Single Cylinder Deadbolt, Less Full Size Interchangeable Core

$89.80
Usually Ships:  1-2 Business Days
  • ANSI Function E0151
  • Single Cylinder x Inside Turn
  • Prepped for FSIC (Core Sold Separately)

Available Options:

Clear

Product Overview

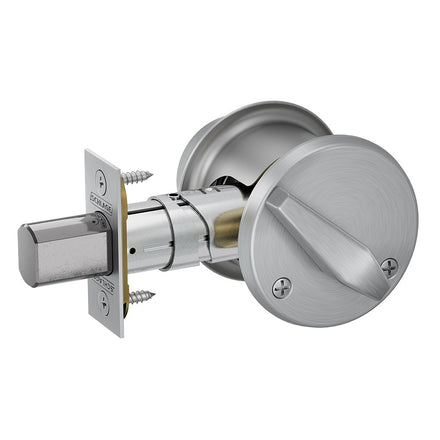

Schlage B560J Single Cylinder Deadbolt, FSIC Prep, Less Core, Adjustable 2-3/8" and 2-3/4" Backset

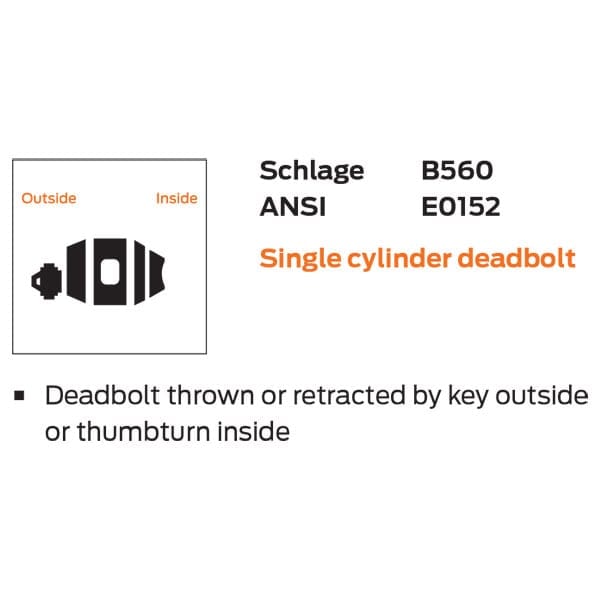

ANSI Function E0151: Deadbolt thrown or retracted by key outside or thumbturn inside

  • 23-030 Full Size Interchangeable Core Sold Separately
  • 2-3/8" to 2-3/4" Adjustable Backset (1-1/8" x 2-1/4" latch face)
  • Quick, easy installation - Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 609 Antique Brass

Deadbolt Type

Single Cylinder

Cylinder

Less Interchangeable Core

ANSI Function

E0151

ANSI/BHMA Standard

ANSI A156.36, Grade 2

ANSI Grade

ANSI Grade 2

Usage

Medium Duty

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

None

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/8" to 1-3/4"
