Trudoor

Trudoor DL2-IND Occupancy Indicator x Thumbturn Deadbolt Lock

$33.83
Usually Ships:  Same Day
  • Ideal for commercial restroom doors
  • Door bolt occupancy indicator x inside turn
  • Includes emergency release key

Available Options:

Clear

Product Overview

Trudoor DL2-IND Grade-2 Occupancy Indicator x Thumbturn Deadbolt Lock, 2-3/4" Backset

DL2 -IND is perfect for commercial restroom doors.

  • Can be used as a replacement for the discontinued Schlage B571 deadbolt

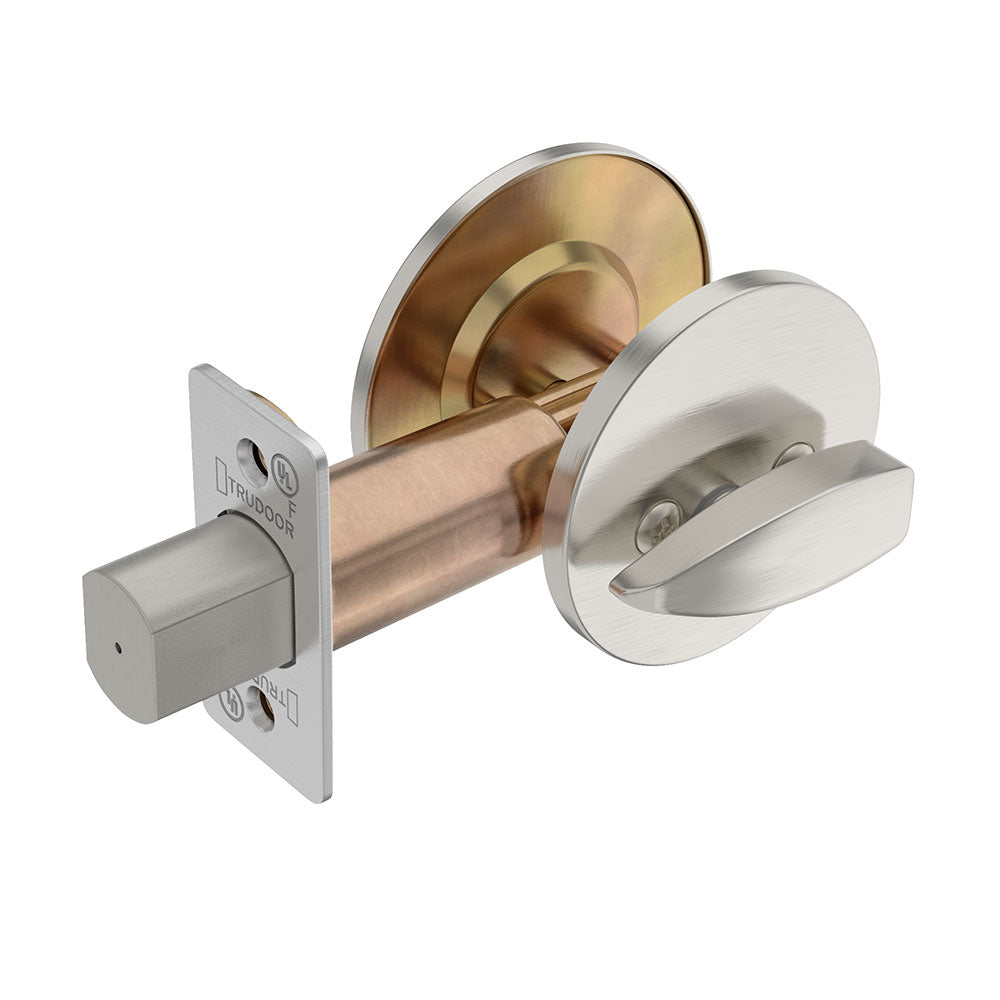

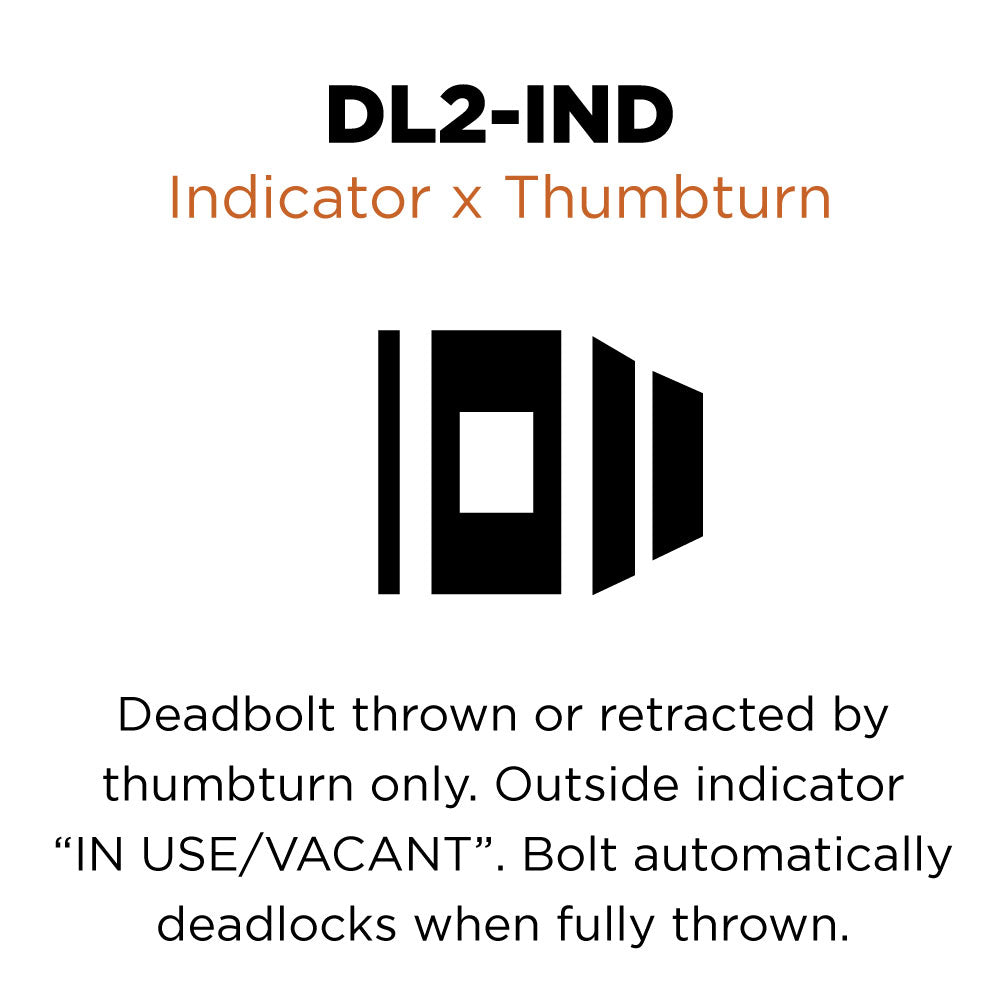

  • Deadbolt thrown or retracted by thumbturn inside

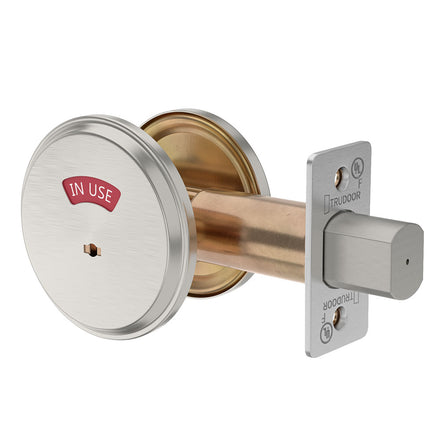

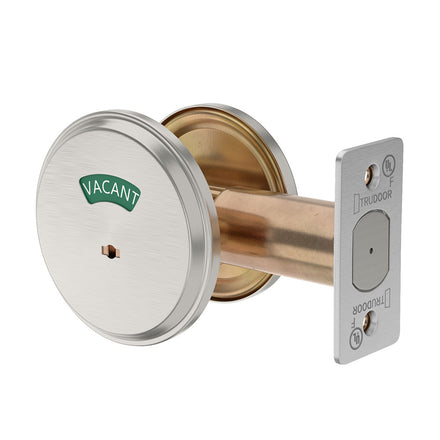

  • Outside indicator displays Red “In use” or Green “Vacant”
  • Emergency key included
  • Meets & exceeds ANSI A156.2, Grade 2 standards
  • For use with metal and wood doors
  • ADA Compliant thumb turn
  • 3-hour fire-rated (UL Listed)

trudoor-certs

Cross Reference

DL2-IND can be specified as a value-engineered substitute and/or replacement for: Accentra/Yale D292, Arrow E50, Cal-Royal IND90-G2, Corbin Russwin DL2261, Design Hardware D2-IND, Dorma QDB285, Falcon D271, Hager 3216, PDQ KV125 IND, Sargent 468, Schlage B571

Brand

Finishes

622 Matte Black, US26D (626) Satin Chrome, US4 (606) Satin Brass, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards

Usage

Medium Duty

Deadbolt Type

Indicator

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/4"

Warranty

Limited Lifetime Warranty
