Product Overview

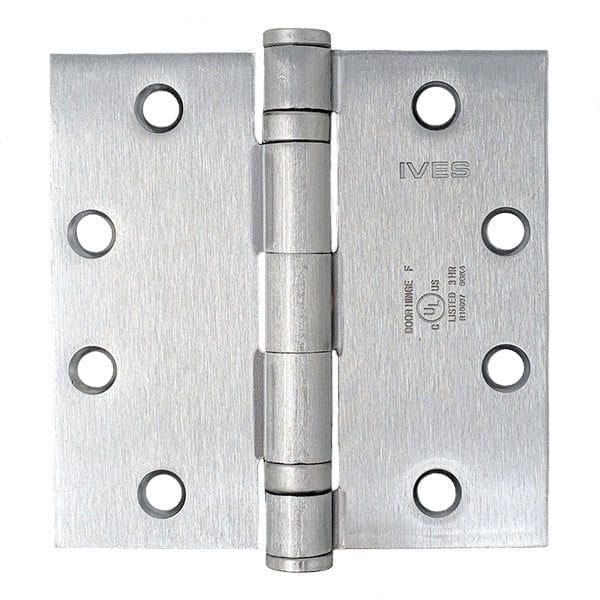

Ives BAA 5BB1 4.5 x 4.5 5-Knuckle Ball Bearing Hinge, Standard Weight, 4-1/2" x 4-1/2", Buy America Act Compliant (BAA)
Ives offers a variety of architectural hinges that will cover any need commercial application while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done.
- Buy America Act Compliant (BAA)
- Hinges tested for cycles, weather, and environment to ensure high performance
- Recommended for medium weight doors (<150 lbs)
- Recommended for medium frequency usage (<400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors
- UL Listed (3 Hour Fire-Rated)
- UL Classified for windstorm rated assemblies - R37965
| Brand | |
|---|---|
| Finishes |
630 Satin Stainless Steel, 652 Satin Chrome |
| Hinge Type |
Full Mortise |
| Size |
4.5" x 4.5" |
| Knuckles |
Five |
| Bearings |
Ball Bearing |
| Gauge |
0.146 |
| Material |
1040 steel or 304 series stainless steel |
| Usage |
Medium Duty |
| ANSI/BHMA Standard |
Certified to ANSI/BHMA A156.1 for performance standards, Meets ANSI/BHMA 156.7 for template hinge dimensions |
| Fire-Rating |
Certified to meet UL standards (3 Hour Fire-Rated) |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
