McKinney TA2714 - 4.5" x 4" Bearing Hinge

$7.09
Usually Ships:  3-5 Business Days
  • Meets ANSI/BHMA A156.1
  • .134 standard weight
  • Five-knuckle, template hole pattern

Available Options:

Clear

Product Overview

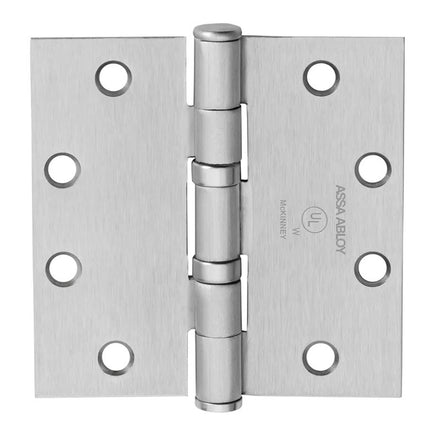

McKinney TA2714 4-1/2 x 4 Full Mortise Steel Five Knuckle Standard Weight Hinge, Oil Impregnated Bearing, Square Corner

The TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.

  • TA: Oil impregnated bearing hinge
  • Dependable and long-lasting
  • Recommended for standard weight, medium frequency doors, or doors with closing devices
  • Packed with wood and metal screws
  • Suites with Rockwood pulls, coat hooks, and door stops
  • Pairs well with Corbin Russwin and Sargent decorative levers
  • UL listed, NFPA 80 Compliant
Brand

Finishes

652 Satin Chrome, 633 Satin Brass, 640 Oil Rubbed Bronze, 651 Bright Chrome, 646 Satin Nickel, 632 Bright Brass, USP Prime Coat, 639 Satin Bronze, BSP - Black Suede Powder Coat, 10BE Satin Bronze Powder Coat

Hinge Type

Full Mortise

Size

4.5" x 4"

Knuckles

Five

Bearings

Oil Impregnated Bearing

Gauge

0 .134

Usage

Medium Duty

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire-Rating

Certified to meet UL standards (3hr)

Fasteners

Packed with wood and metal screws
