Ives 5BB1 - 3.5" x 3.5" Ball Bearing Hinge

$10.42
Usually Ships:  1-2 Business Days
  • Meets Industry Standards ANSI/BHMA A156.1
  • .123 Standard Weight - Ball Bearing
  • Five Knuckle, Template Hole Pattern

Available Options:

Clear

Product Overview

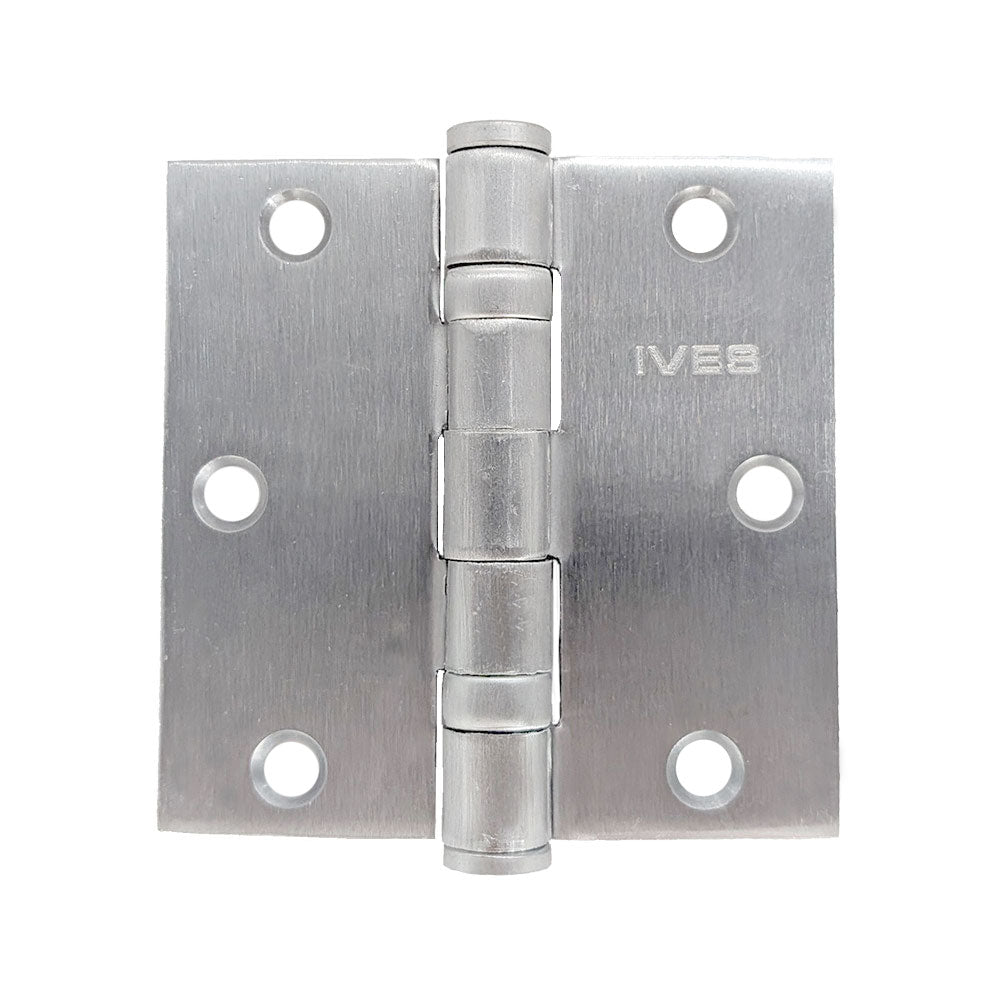

Ives 5BB1 - 3-1/2" x 3-1/2" Steel Full Mortise Five Knuckle Ball Bearing Hinge, Square Corner

With tested durability and consistent superior performance, Ives architectural hinges get the job done.

  • Typically used with bifold doors or lightweight doors
  • Recommended for medium-weight doors (<150 lbs)
  • Recommended for medium frequency usage (<400 cycles per day)
  • Made with two ball bearing assemblies
  • Packed with fasteners for hollow metal and wood doors
Brand

Finishes

652 Satin Chrome, 695 Dark Bronze (Powder Coated), 640 Oil Rubbed Bronze, F-BLK Flat Black

Hinge Type

Full Mortise

Size

3.5" x 3.5"

Bearings

Ball Bearing

Knuckles

Five

Gauge

0.123

Material

1040 steel or 304 series stainless steel

Usage

Medium Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.1 for performance standards, Meets ANSI/BHMA 156.7 for template hinge dimensions
