Ives 5BB1 - 4" x 4" Ball Bearing Hinge

$10.78
Usually Ships:  3-5 Business Days
  • Meets Industry Standards ANSI/BHMA A156.1
  • .130 Standard Weight - Ball Bearing
  • Five Knuckle, Template Hole Pattern

Available Options:

Clear

Product Overview

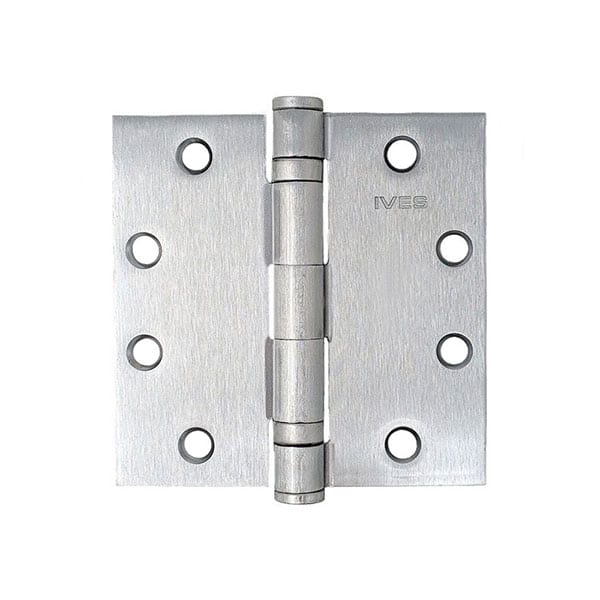

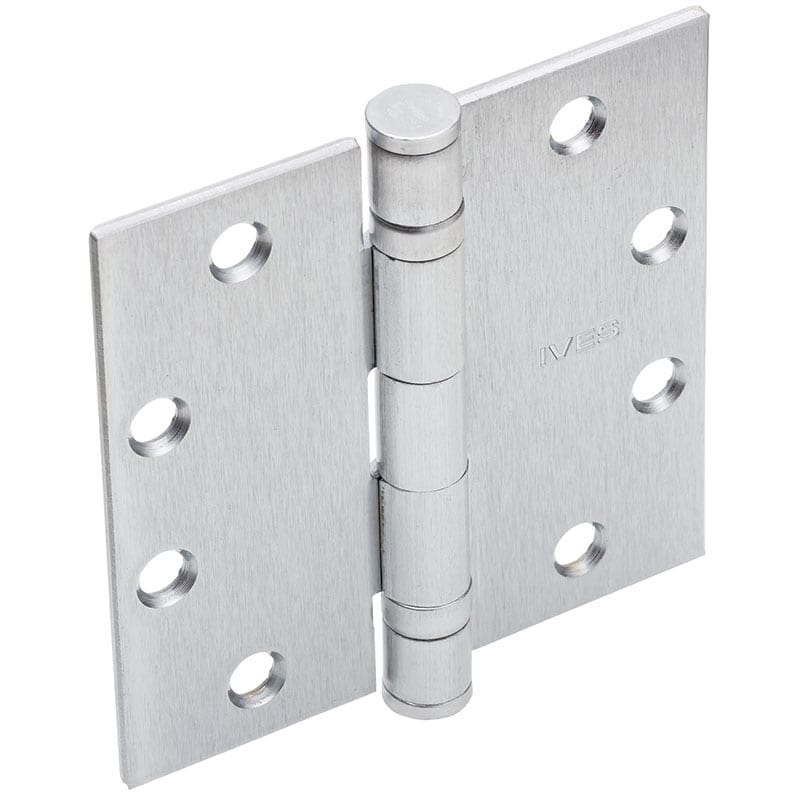

Ives 5BB1 Standard Weight Ball Bearing Hinge, 4" x 4"

With tested durability and consistent superior performance, Ives architectural hinges get the job done.

  • Hinges tested for cycles, weather, and environment to ensure high performance
  • Recommended for medium weight doors (<150 lbs)
  • Recommended for medium frequency usage (<400 cycles per day)
  • Made with two ball bearing assemblies
  • Recommended for use with a door closer
  • Packed with fasteners for hollow metal and wood doors
Brand

Finishes

630 Satin Stainless Steel, 640 Oil Rubbed Bronze, F-BLK Flat Black, 652 Satin Chrome, 695 Dark Bronze (Powder Coated)

Hinge Type

Full Mortise

Size

4" x 4"

Knuckles

Five

Bearings

Ball Bearing

Gauge

0.130

Material

1040 steel or 304 series stainless steel

Usage

Medium Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.1 for performance standards, Meets ANSI/BHMA 156.7 for template hinge dimensions
