Product Overview

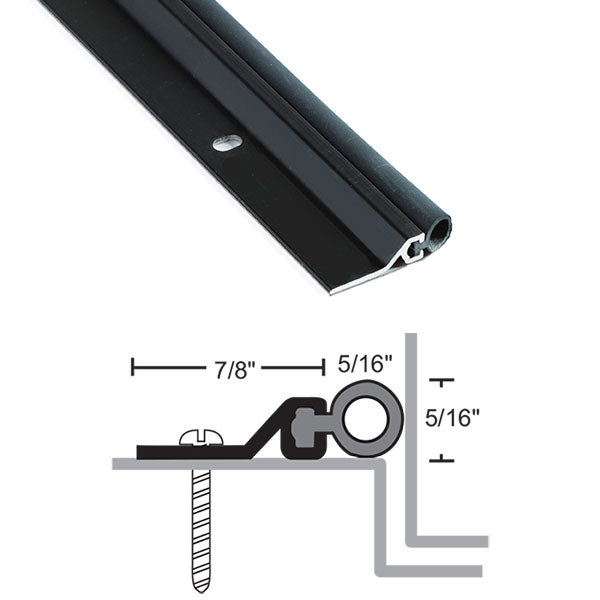

National Guard Products (NGP) 160VDKB Dark Bronze Aluminum Vinyl Perimeter Seal Set
Designed to be applied to the “stop” perimeter of the door frame. Includes a vinyl seal with aluminum framing. The vinyl seal compresses against the door, to create a tight weatherproof seal.
- Aluminum alloy 6063, T5 temper
- Thermoplastic polymer: Polyvinyl Chloride formulated with an environmentally friendly Bio-based plasticizer
- Economical
- Flame resistant
- Moisture resistant
- Temperature range 0°F to 140°F
- Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
- #6 x 3/4" stainless steel sheet metal screws furnished
- Screw holes slotted for adjustment
- Vinyl insert is black
- Dark bronze finish
- Available Sizes: 36″ x 84″ Set, 72″ x 84″ Set and *96″ Single Piece (add 3 for 96″ x 96″ Frame)
- Full-Length; Field-Cut to Size
*excessive length shipping fee applies
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C
- AIR INFILTRATION TESTED to ASTM E283
| Brand | |
|---|---|
| Finish |
Dark Bronze |
| Size |
36" x 84", 96", 72" x 84" |
| Fire-Rating |
Fire Rated – UL10C – Positive Pressure |
| Gasket Type |
Screw-on |
| Insert/Seal Type |
Vinyl |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
