Pemko

Pemko 303_S (PG) Standard Perimeter Gasketing Weatherstrip with Silicone Insert

$60.72
Usually Ships:  1-2 Business Days
  • Use on door frames to seal top and sides of door
  • Seals against smoke, fire, air, and weather
  • #6 x 5/8" Pan head sheet metal screws furnished

Available Options:

Clear

Product Overview

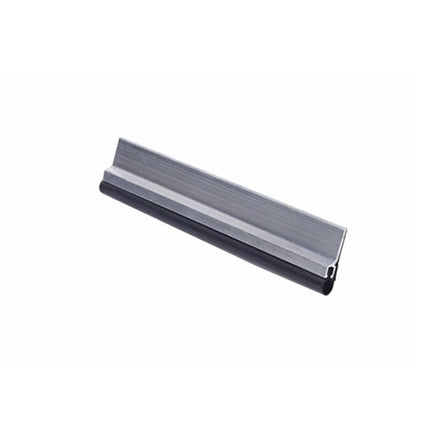

Pemko 303_S (PG) Standard Perimeter Gasketing with Silicone Insert

Designed to be applied to the “stop” perimeter of the door frame. Includes a silicone seal with aluminum framing. The silicone seal compresses against the door, to create a tight weatherproof seal.

Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

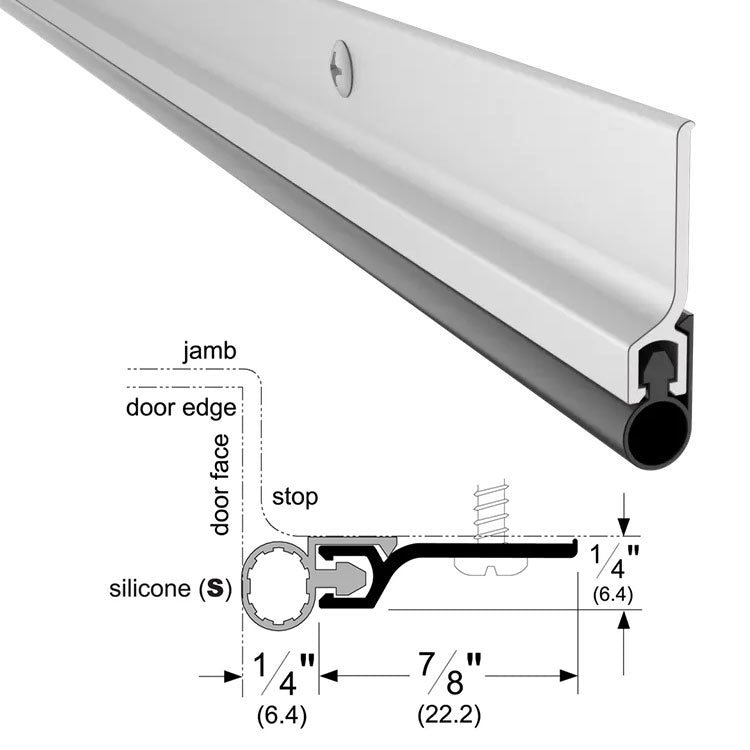

Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.

  • This perimeter gasketing is supplied with a Silicone ("S") insert
  • Stainless steel fasteners are standard
  • Available Sizes: 36″ x 84″ Set, *36″ x 96″ Set, 48" x 84" Set, 72″ x 84″ Set, *72" x 96" Set, *96" x 96" Set, and *96″ Single Piece
  • Full-Length; Field-Cut to Size

*excessive length shipping fee applies

Finishes

  • 303AS: A - Mill Finish Aluminum Aluminum with Silicone insert
  • 303BSPS: BSP - Black Suede Powder Coat Aluminum with Silicone insert
  • 303DS: D - Dark Bronze Anodized Aluminum with Silicone insert
  • 303GS: G - Gold Powder Coat with Silicone insert
  • 303WSPS: WSP - White Suede Powder Coat Aluminum with Silicone insert

Ratings

  • Air Infiltration Tested
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Brand

Finishes

WSP - White Suede Powder Coat, G - Gold Powder Coat, BSP - Black Suede Powder Coat, A - Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum

Size

36" x 84", 72" x 84", 96", 36" x 96", 48" x 84", 72" x 96", 96" x 96"

Fire-Rating

Fire Rated - UL10C - Positive Pressure

Gasket Type

Screw-on

Insert/Seal Type

Silicone
