Product Overview
Pemko 296_S Standard Perimeter Gasketing with Silicone Insert

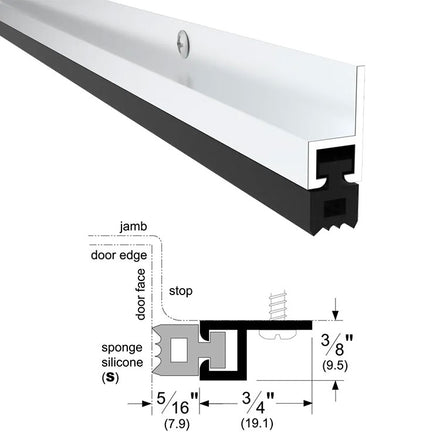

Designed to be applied to the “stop” perimeter of the door frame. Includes a silicone seal with aluminum framing. The silicone seal compresses against the door, to create a tight weatherproof seal.
Rigid jamp weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.
- This perimeter gasketing is supplied with a Silicone ("S") insert
- Stainless steel fasteners are standard
- Available Sizes: 36″ x 84″ Set, *36" x 96" Set, 72″ x 84″ Set, *72" x 96" Set, *96" x 96 Set, and *96″ Single Piece
- Full-Length; Field-Cut to Size
*excessive length shipping fee applies
Finishes
- 296CS: C - Clear Anodized Aluminum with Black Silicone insert
- 296BSPS: BSP - Black Suede Powder Coat Aluminum with Black Silicone insert
- 296DS: D - Dark Bronze Anodized Aluminum with Black Silicone insert
Ratings
- Air Infiltration Tested
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Finishes |
BSP - Black Suede Powder Coat, C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum |
| Size |
36" x 84", 96" x 96", 36" x 96", 72" x 84", 72" x 96", 96" |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
| Gasket Type |
Screw-on |
| Insert/Seal Type |
Silicone |
