Product Overview

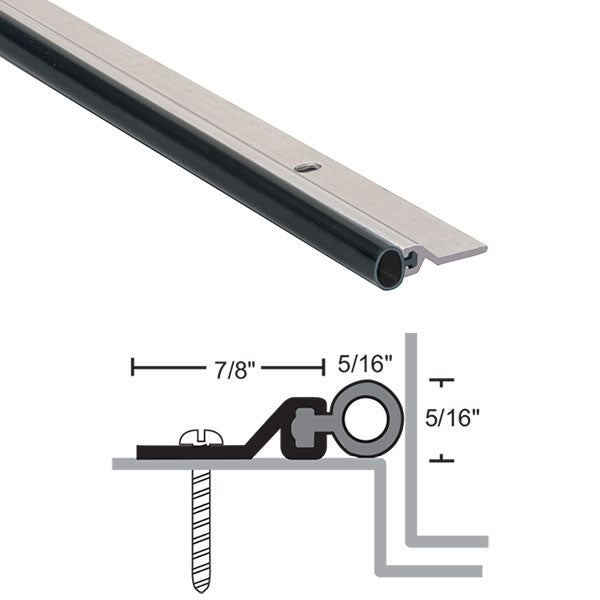

National Guard Products (NGP) 160U Mill Aluminum Polyurethane Perimeter Seal Set
Designed to be applied to the “stop” perimeter of the door frame. The seal compresses against the door, to create a tight seal.
- Aluminum alloy 6063, T5 temper
- Very good abrasion resistance, tensile strength, memory, and UV resistance
- Flame resistant
- Moisture resistant
- Temperature range -65°F to 175°F
- #6 x 3/4" stainless steel sheet metal screws furnished
- Screw holes slotted for adjustment
- Polyurethane is black
- Mill aluminum
- Available Sizes: 36″ x 84″ Set, 72″ x 84″ Set and *96″ Single Piece (add 3 for 96″ x 96″ Frame)
- Full-Length; Field-Cut to Size
*excessive length shipping fee applies
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C
- AIR INFILTRATION TESTED to ASTM E283
| Brand | |
|---|---|
| Finish |
Aluminum |
| Size |
36" x 84", 96", 72" x 84" |
| Fire-Rating |
Fire Rated – UL10C – Positive Pressure |
| Gasket Type |
Screw-on |
| Insert/Seal Type |
Polyurethane |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
