Product Overview
Schlage L9050R Office/Entry Mortise Lock, 06 Lever, A Rose, Full Size Interchangeable Core
L Series locks are ideal for use in schools, hospitals, and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

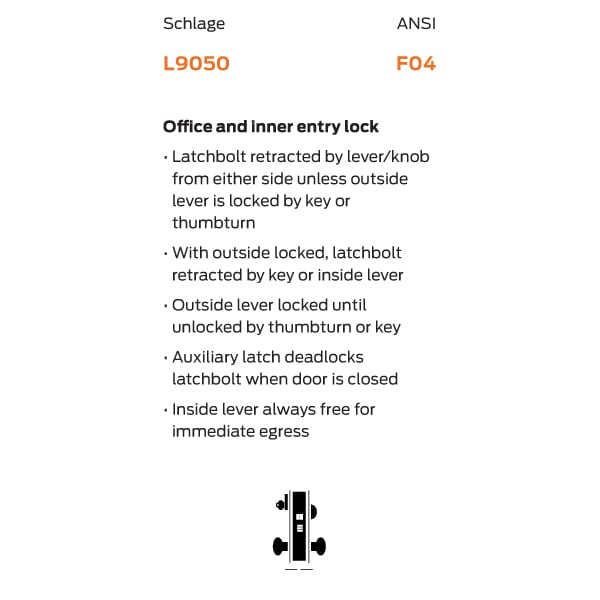

ANSI F04 – Office/Entry – Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by lever inside. Outside lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside liner is always free for immediate egress.
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome |
| Lock Function |
Office |
| ANSI Function |
F04 |
| Cylinder & Keys |
Schlage FSIC with core, 1-bitted, with 2 keys |
| Keyway |
Schlage C Keyway, Schlage S123 Keyway |
| Usage |
Heavy Duty |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Backset |
2-3/4" |
| Strike |
ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Case |
Steel case and parts are corrosion resistant |
| Case Size |
4-7⁄16" x 6-1⁄16" x 1" |
| Armored Front |
1-1/4" x 8" x 7/32" standard |
| Handing |
Field-reversible handing without opening lock case |
| Door Thickness |
1-3/4" |

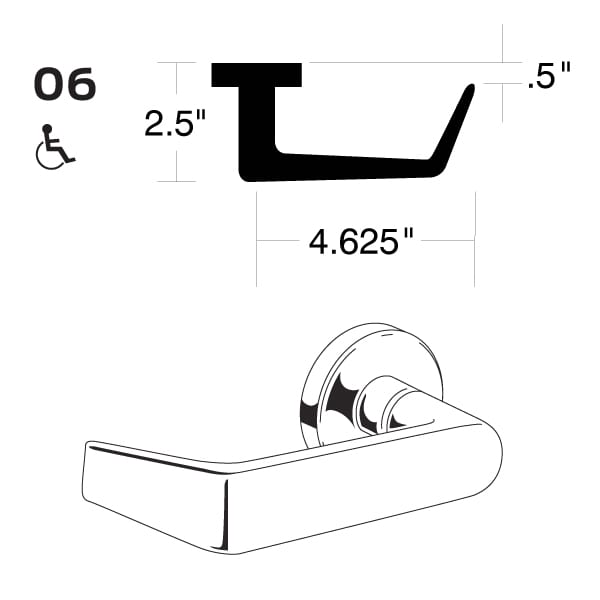

| Lever Design |
06A |
