Product Overview

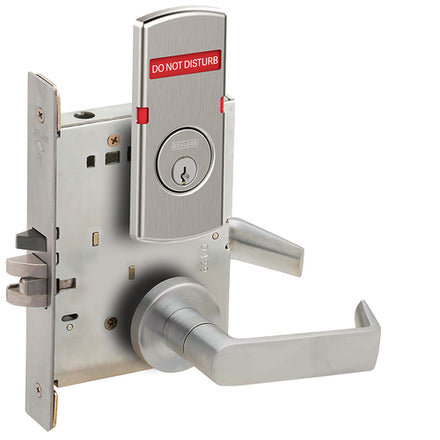

Schlage L9050P OS-DND Office/Entry Mortise Lock, 06A Design, Conventional Cylinder, DO NOT DISTURB Indicator for Outside of Door
Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
L Series locks are ideal for use in schools, hospitals, and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

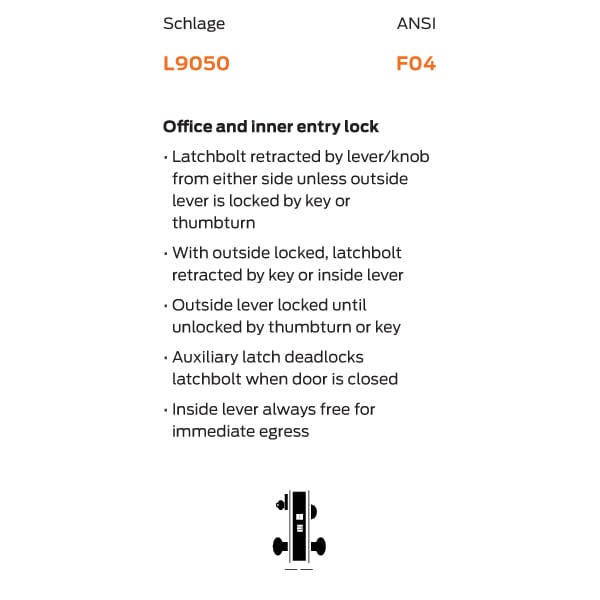

ANSI F04 - Office/Entry - Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by lever inside. Outside lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside liner is always free for immediate egress.
- Patented, 180-Degree, High-Visibility Lock Status Indicator
- Maximized message size
- Red and white backgrounds to serve color-blind needs
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome |
| ANSI Function |
F04 |
| Lock Function |
Office w/ Indicator |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Cylinder & Keys |
30-001 cylinder keyed different, with 2 keys |
| Keyway |
Schlage C Keyway, Schlage S123 Keyway |
| Backset |
2-3/4" |
| Latchbolt |
3⁄4" throw stainless steel latch with anti-friction tongue |
| Strike |
ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Armored Front |
1-1/4" x 8" x 7/32" standard |
| Case Size |
4-7⁄16" x 6-1⁄16" x 1" |
| Case |
Steel case and parts are corrosion resistant |
| Handing |
Field-reversible handing without opening lock case |
| Door Thickness |
1-3/4" |

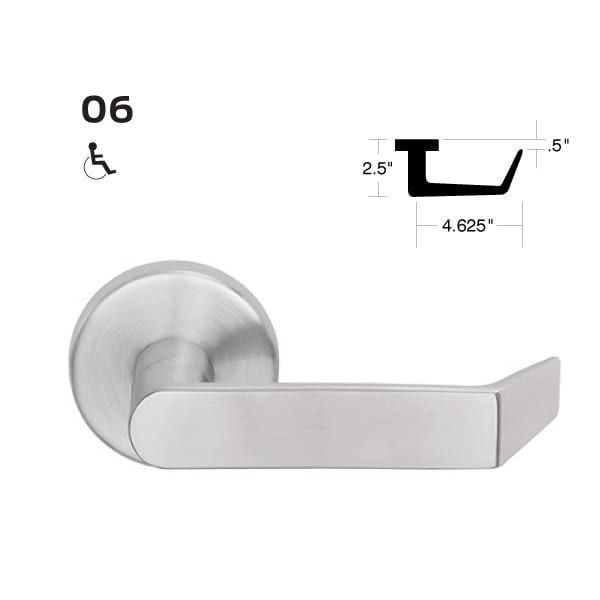

| Lever Design |
06A |
