Product Overview
Schlage L9076P 06A 626 Grade 1 Classroom Holdback Mortise Lock, Conventional Cylinder, 06 Lever, A Rose, Satin Chrome Finish, Field Reversible
Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

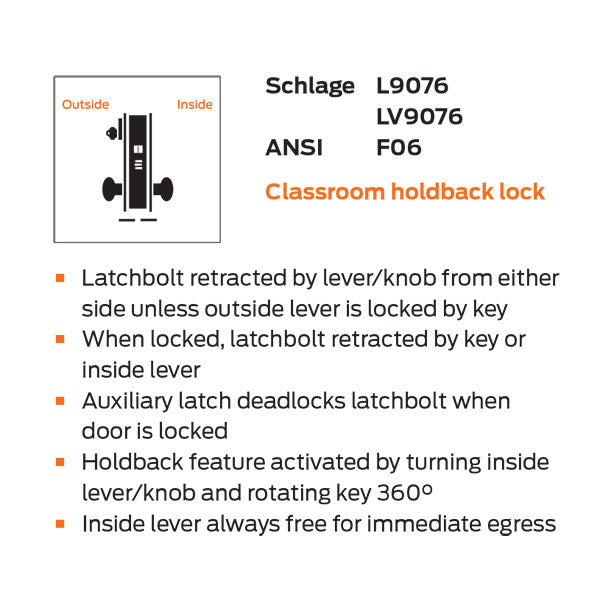

ANSI Function F06 - Latchbolt retracted by lever/knob from either side unless outside lever is locked by key. When locked, latchbolt retracted by key or inside lever. Auxiliary latch deadlocks latchbolt when door is locked. Holdback feature activated by turning inside lever/knob and rotating key 360°. Inside lever always free for immediate egress.
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome |
| Lock Function |
Classroom Holdback |
| ANSI Function |
F06 |

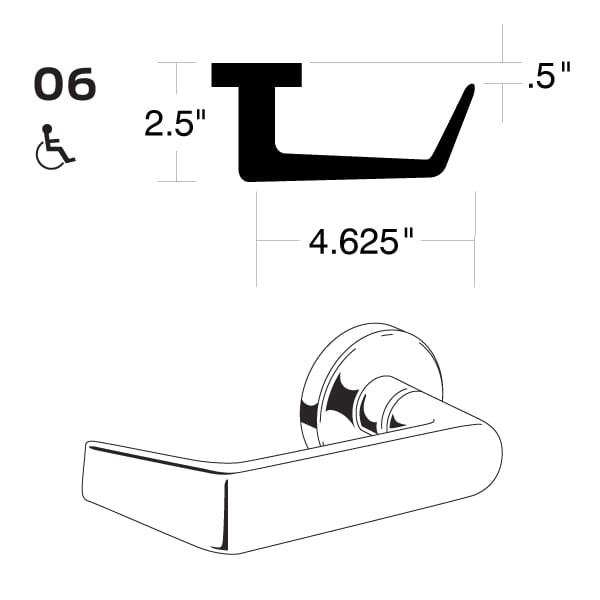

| Lever Design |
06A |
| Cylinder & Keys |
30-001 cylinder keyed different, with 2 keys |
| Keyway |
Schlage C Keyway, Schlage S123 Keyway |
| Usage |
Heavy Duty |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Backset |
2-3/4" |
| Strike |
ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Case |
Steel case and parts are corrosion resistant |
| Case Size |
4-7⁄16" x 6-1⁄16" x 1" |
| Armored Front |
1-1/4" x 8" x 7/32" standard |
| Handing |
Field-reversible handing without opening lock case |
| Door Thickness |
1-3/4" |
| Cylinder Format |
Conventional |
