Product Overview

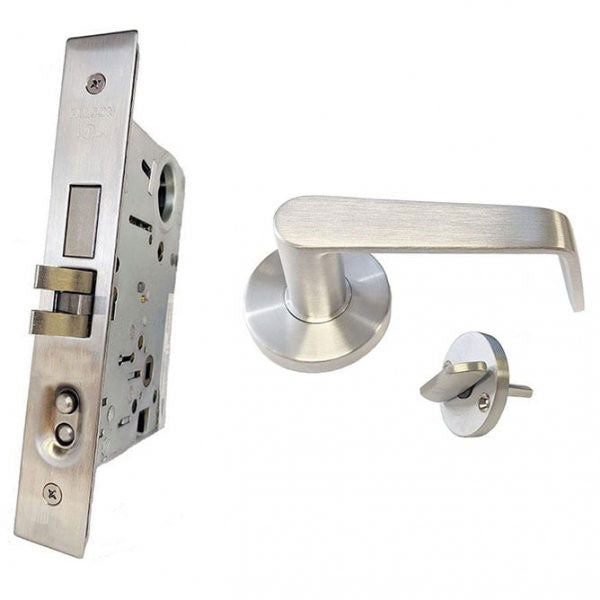

Falcon MA621 DG Apartment Corridor Mortise Lock with Button Lockout Mortise Lock, Dane Lever, Gala Rose
The MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.
ANSI F08/F10 - Apartment corridor lock with button lockout: Latch bolt is operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress.
- UL listed and certified Operational Grade 1 and Security Grade
- Cold-formed steel, zinc plated with dichromate for corrosion resistance
- Ability to easily re-hand the lock in the field
- Conventional cylinder or (SFIC) small format interchangeable core housing (less core)
Models: MA621P-DG-605, MA621CP6-DG-605, MA621B-DG-605, MA621L-DG-605, MA621P-DG-606, MA621CP6-DG-606, MA621B-DG-606, MA621L-DG-606, MA621P-DG-613, MA621CP6-DG-613, MA621B-DG-613, MA621L-DG-613, MA621P-DG-622, MA621CP6-DG-622, MA621B-DG-622, MA621L-DG-622, MA621P-DG-626, MA621CP6-DG-626, MA621B-DG-626, MA621L-DG-626, MA621P-DG-630, MA621CP6-DG-630, MA621B-DG-630, MA621L-DG-630
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 630 Satin Stainless Steel, 643e Aged Bronze |
| Cylinder |
985 Mortise Cylinder (Schlage C Keyway), Less Cylinder (no cylinder), 985 Mortise Cylinder (Falcon G Keyway), 987 SFIC Mortise Cylinder Housing (Less Core) |
| Lock Function |
Corridor |
| ANSI Function |
F08, F10 |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Lever Design |
DG Dane Gala |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Case |
Cold formed steel, zinc dichromate plated, .090” thick |
| Latchbolt |
Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection |
| Deadbolt |
1" throw, stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant roller. |
| Faceplate |
(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs |
| Strike |
Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Door Thickness |
1-3/4" |
