Product Overview
Falcon MA381 DG Apartment Exit Mortise Lock, Dane Lever, Gala Rose
The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.
ANSI F09 - Apartment exit lock: Latch bolt operated by knob/lever from either side, except when outside knob/lever is locked by key from inside. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress.
- UL listed and certified Operational Grade 1 and Security Grade
- Cold-formed steel, zinc plated with dichromate for corrosion resistance
- Requires two cylinders
- Conventional cylinders or (SFIC) small format interchangeable core housings (less core)
Models: MA381P-DG-626, MA381CP6-DG-626, MA381B-DG-626, MA381P-DG-630, MA381CP6-DG-630, MA381B-DG-630
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 630 Satin Stainless Steel |
| Cylinders |
Requires 2: 985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing |

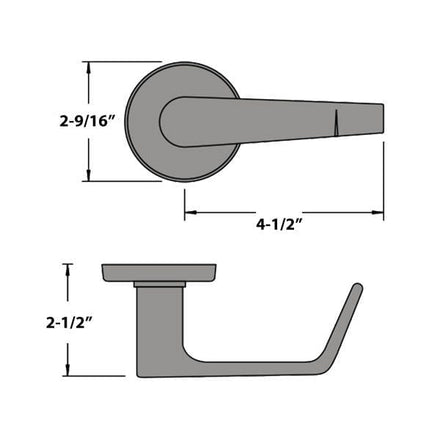

| Lever Design |
DG Dane Gala |
| Lock Function |
Apartment Exit |
| ANSI Function |
F09 |
| Usage |
Heavy Duty |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Handing |
Handed – LH, RH |
| Backset |
2-3/4" |
| Case |
Cold formed steel, zinc dichromate plated, .090” thick |
| Latchbolt |
Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection |
| Faceplate |
(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs |
| Strike |
Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Door Thickness |
1-3/4" |
