Product Overview
Falcon MA561 DG Classroom Mortise Lock, Dane Lever, Gala Rose
The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.
ANSI F05 - Classroom: Latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is retracted by key from outside, or by operating inside lever. Auxiliary deadlatch deadlocks latchbolt when door is closed. Inside lever always free for immediate exit.
- UL listed and certified Operational Grade 1 and Security Grade
- Cold-formed steel, zinc plated with dichromate for corrosion resistance
- Ability to easily re-hand the lock in the field
- Conventional cylinder or (SFIC) small format interchangeable core housing (less core)
Models: MA561P-DG-605, MA561CP6-DG-605, MA561B-DG-605, MA561L-DG-605, MA561P-DG-606, MA561CP6-DG-606, MA561B-DG-606, MA561L-DG-606, MA561P-DG-613, MA561CP6-DG-613, MA561B-DG-613, MA561L-DG-613, MA561P-DG-622, MA561CP6-DG-622, MA561B-DG-622, MA561L-DG-622, MA561L-DG-625, MA561P-DG-626, MA561CP6-DG-626, MA561B-DG-626, MA561L-DG-626, MA561P-DG-630, MA561CP6-DG-630, MA561B-DG-630, MA561L-DG-630
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 625 Bright Chrome, 630 Satin Stainless Steel, 643e Aged Bronze |
| Cylinder |
985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing |
| Lock Function |
Classroom |
| ANSI Function |
F05 |
| Usage |
Heavy Duty |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Case |
Cold formed steel, zinc dichromate plated, .090” thick |
| Latchbolt |
Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection |
| Faceplate |
(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs |
| Strike |
Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Door Thickness |
1-3/4" |

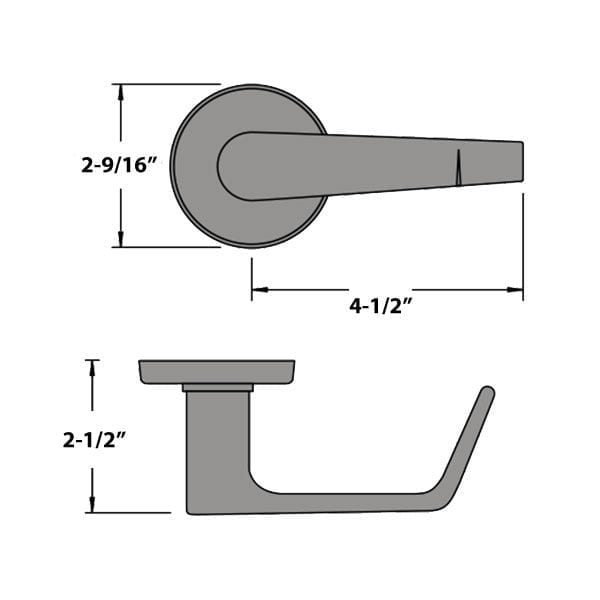

| Lever Design |
DG Dane Gala |
