Product Overview
Von Duprin 9947WDCEO/9947WDCEO-F Grade 1 Concealed Vertical Rod Exit Bar for Wood Doors, Exit Only
The 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9947WDC Concealed vertical rod device for use on single or double wood doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1.
- Scalp plate – Device is furnished standard with an 8" long scalp plate for easy access to rods.
- 9947WDCEO-F Model: UL Listed Fire Hardware (Fire-Rated)
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome |
| Length |
3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| Device Type |
Concealed Rod Device |
| Vertical Rods |
Top rod adjustable from 6'8" to 8'4". Bottom rod adjustable 35-5/8" to 49-5/8" |
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
| Usage |
Heavy Duty |
| Fire-Rating |
9947WDCEO: Non-Rated - 9947WDCEO-F: Fire-Rated |
| Hand |
Non-handed |
| Latchbolt |
Deadlocking top bolt, 5/8" throw |
| Fasteners |
Includes screw pack for 1-3/4" to 2-1/4" thick wood doors. |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |

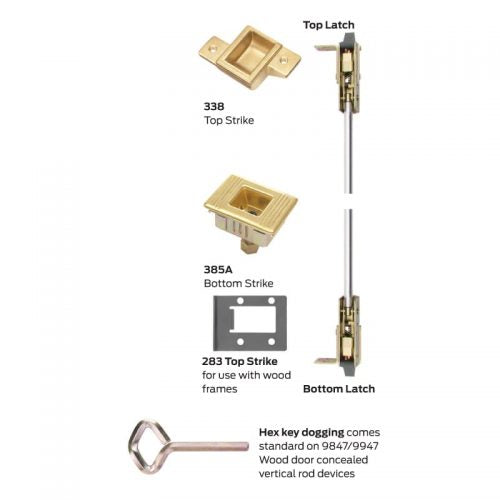

| Strike |
Top – 338 - Unfinished, Bottom – 385A - Unfinished |
| Stile Type |
Wide (Standard) |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Door Applications |
1-3/4" to 2-1/4" Thick Wood Doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
