Product Overview
Von Duprin 9927DT Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 990DT Pull, 84" Door Height
The 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources, and more.
- Standard Sizes: 3' x 7', 4' x 7' (extension rod available for door up to 10'0")
- Designed for high use and abuse in institutional applications
990DT Dummy Pull Trim
- ANSI Function: 02 (Push/Pull when dogged down)
- Escutcheon plate size: 3" x 14-13/16" x 3/32"
- Projection: 2"
- Pull center to center: 5-1/2"
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US19 (315) Flat Black, 313 Duranodic Dark Bronze |
| Length |
3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| Vertical Rods |
Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available) |
| Trim |
990DT (Dummy Pull - Pull When Dogged) |
| Hand |
Non-handed |
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
| Usage |
Heavy Duty |
| Fire-Rating |
Non Rated |
| Latchbolt |
Deadlocking anti-friction top & bottom bolt, 5/8" throw |

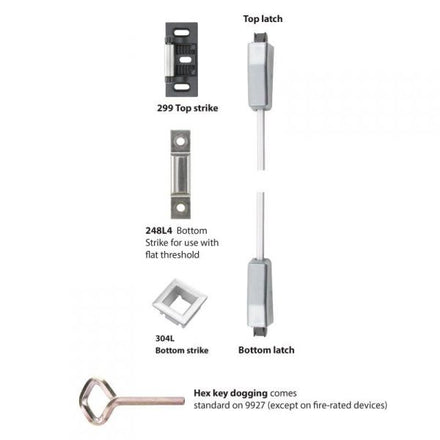

| Strikes |
299 Top Strike, 304L Bottom Strike - 248L4 Bottom strike for use with flat threshold |
| Fasteners |
Includes screws for metal and wood doors |
| Dogging Feature |
Half turn hex dogging standard |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Stile Type |
Wide (Standard) |
| Device Type |
Surface Rod Device |
| Door Applications |
1-3/4″ Thick Doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
