Product Overview
Stainless steel. Tamper-resistant leaf covers. Flush mounted (no door inset). For 1-3/4" doors weighing up to 600 lb., 48" max. door width.
SL302 pin & barrel continuous hinges are BHMA Grade 1 certified.
- CORROSION-RESISTANT STAINLESS STEEL
- TEMPLATED HOLE PATTERN
- 3-HR. FIRE RATING
- STAINLESS STEEL PIN
| Brand | |
|---|---|
| Length |
83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door) |
| Finish |
Stainless Steel |
| Material |
14 gauge 304 stainless steel with 3/16" diameter 304 stainless pin. Long-life nylon medical bearings. |
| Load / Frequency |
For 1-3/4" doors, 48" wide (max.), weighing up to 400 pounds (medium-frequency) without frame or door reinforcement; up to 600 pounds (low-frequency) without frame or door reinforcement. |
| ANSI/BHMA Standard |
ANSI/BHMA A156.26-2006 Grade 1 |
| Fire-Rating |
3 Hour Fire-rated |
| Continuous Hinge Type |
Full Surface |
| Usage |
Heavy Duty |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
Related Products
-
Pemko - FM_HD1-M PemKonnect Modular Full Mortise Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $160.65
Usage: Heavy Duty -
Pemko - FM_HD1 Full Mortise Continuous Gear Hinge, Heavy-Duty
Multiple FinishesStarting at: $153.62
Usage: Heavy Duty -
Pemko - FM_HD1-FIREPIN Full Mortise Continuous Gear Hinge, Heavy-Duty, 3-Hour Fire-Rated
Multiple FinishesStarting at: $233.44
Usage: Heavy Duty -
Pemko - FM_SLF-HD1-M PemKonnect Modular Full Mortise Short Leaf Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $160.65
Usage: Heavy Duty -
Pemko - FM_SLF-HD1 Full Mortise Short Leaf Flush Continuous Gear Hinge, Heavy-Duty
Multiple FinishesStarting at: $153.62
Usage: Heavy Duty -
Pemko - FM_SLI-HD1 Full Mortise Short Leaf Inset Continuous Gear Hinge, Heavy-Duty
Multiple FinishesStarting at: $153.62
Usage: Heavy Duty -
Pemko - FS_HD1-M PemKonnect Modular Full Surface Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $65.03
Usage: Heavy Duty -
Pemko - FS_Full Surface Continuous Gear Hinge
Multiple FinishesStarting at: $214.64
Usage: Standard Duty -
Pemko - FS_HD1 Full Surface Continuous Gear Hinge, Heavy-Duty
Multiple FinishesStarting at: $217.00
Usage: Heavy Duty -
Pemko - FS_CP Full Surface Center Pivot Continuous Gear Hinge
Multiple FinishesStarting at: $229.44
Usage: Standard Duty -
Pemko - FS_CP-HD1 Full Surface Center Pivot Continuous Gear Hinge, Heavy-Duty
Multiple FinishesStarting at: $226.77
Usage: Heavy Duty -
Pemko - HM_HD Half Mortise Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $235.72
Usage: Heavy Duty -
Pemko - HS_HD Half Surface Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $230.03
Usage: Heavy Duty -
Pemko - FM_SF_HD Full Mortise Safety Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $160.12
Usage: Heavy Duty -
Pemko - FM_SLISF_HD Full Mortise Short Leaf Inset Safety Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $160.12
Usage: Heavy Duty -
Pemko - FM_RG_HD1 Full Mortise Raised Geared Continuous Hinge, Heavy Duty
Multiple FinishesStarting at: $199.95
Usage: Heavy Duty -
Pemko - K_FM_HD Full Mortise Kawneer Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $153.62
Usage: Heavy Duty -
Pemko - RS138 Full Mortise Continuous Gear Hinge for 1-3/8" Thick Door
Multiple FinishesStarting at: $125.17
Usage: Standard Duty -
Pemko - WT_FM-HD1 Full Mortise Wide Throw Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $285.30
Usage: Heavy Duty -
Pemko - WT_HS-HD1 Half Surface Wide Throw Continuous Gear Hinge, Heavy Duty
Multiple FinishesStarting at: $382.02
Usage: Heavy Duty -
Pemko - X25M Series Extra Heavy Duty Full Mortise Continuous Gear Hinge for 2-1/2" Thick Door
Multiple FinishesStarting at: $619.36
Usage: Heavy Duty -
Pemko - DSH1000 Behavioral Health Double Swing Pin and Barrel Continuous Hinge
Starting at: $872.93Usage: Heavy Duty -
Pemko - DSHP01 General Healthcare Double Swing Continuous Geared Hinge
Starting at: $872.16Usage: Heavy Duty -
Markar - FM200 Heavy Duty Full Mortise Edge Mounted Pin & Barrel Continuous Hinge
Starting at: $400.72Usage: Heavy Duty -
Markar - FM300 Heavy Duty Full Mortise Edge Mounted Stainless Steel Pin & Barrel Continuous Hinge
Starting at: $428.38Usage: Heavy Duty -
Markar - FM300WT Heavy Duty Full Mortise Wide Throw Stainless Steel Pin & Barrel Continuous Hinge
Starting at: $854.34Usage: Heavy Duty -
Markar - FM400 Full Mortise Spring Loaded Toilet Partition Continuous Hinge
Starting at: $234.09Usage: Standard Duty -
Markar - FM900 Full Mortise Spring Loaded Toilet Partition Continuous Hinge
Starting at: $479.56Usage: Standard Duty -
Markar - FM3500 Extra Heavy Duty Full Mortise Stainless Steel Pin & Barrel Continuous Security Hinge
Starting at: $889.20Usage: Heavy Duty -
Markar - FS/SC309 Heavy Duty Full Surface Swing Clear Stainless Steel Pin & Barrel Continuous Hinge
Starting at: $817.16Usage: Heavy Duty -
Markar - FS301 Heavy Duty Full Surface Stainless Steel Pin & Barrel Continuous Hinge
Starting at: $657.57Usage: Heavy Duty -
Markar - FS302 Heavy Duty Full Surface Stainless Steel Pin & Barrel Continuous Hinge
Starting at: $657.57Usage: Heavy Duty -
Markar - FS402 Full Surface Spring Loaded Toilet Partition Continuous Hinge
Starting at: $560.03Usage: Standard Duty -
Markar - FS902 Full Surface Spring Loaded Toilet Partition Continuous Hinge
Starting at: $616.92Usage: Standard Duty -
Markar - FS3501 Extra Heavy Duty Full Surface Stainless Steel Pin & Barrel Continuous Security Hinge
Starting at: $1,078.97Usage: Heavy Duty -
Markar - FS3502 Extra Heavy Duty Full Surface Stainless Steel Pin & Barrel Continuous Security Hinge
Starting at: $1,078.97Usage: Heavy Duty -
Markar - HM304 Heavy Duty Half Mortise Stainless Steel Pin & Barrel Continuous Hinge
Starting at: $607.98Usage: Heavy Duty -
Markar - HS303 Heavy Duty Half Surface Stainless Steel Pin & Barrel Continuous Hinge
Starting at: $615.30Usage: Heavy Duty -
Markar - HG305 Adjustable Hinge Guard, Stainless Steel Pin & Barrel Continuous Hinge, Double Return
Starting at: $627.49Usage: Heavy Duty -
Markar - HG310 Hinge Guard, Stainless Steel Pin & Barrel Swing Clear Continuous Hinge
Starting at: $750.55Usage: Heavy Duty -
Markar - HG311 Hinge Guard, Stainless Steel Pin & Barrel Swing Clear Continuous Hinge
Starting at: $604.93Usage: Heavy Duty -
Markar - HG315 Edge Mount Hinge Guard, Stainless Steel Pin & Barrel Continuous Hinge, Single Return
Starting at: $491.75Usage: Heavy Duty -
Ives - 224HD Heavy Duty Full Mortise Continuous Gear Hinge
Multiple FinishesStarting at: $166.41
Usage: Heavy Duty -
Ives - 224HD-EPT Heavy Duty Full Mortise Continuous Gear Hinge Prepped for Electric Power Transfer
Starting at: $273.06Usage: Heavy Duty -
Ives - 112HD Heavy Duty Full Mortise Continuous Gear Hinge
Multiple FinishesStarting at: $155.96
Usage: Heavy Duty -
Ives - 112XY Heavy Duty Full Mortise Continuous Gear Hinge
Multiple FinishesStarting at: $195.73
Usage: Heavy Duty -
Ives - 157XY Heavy Duty Adjustable Full Surface Continuous Hinge
Multiple FinishesStarting at: $241.65
Usage: Heavy Duty -
Ives - 700 Heavy Duty Stainless Steel Full Mortise Pin and Barrel Continuous Hinge
Starting at: $402.14Usage: Heavy Duty -
Ives - 705 Heavy Duty Stainless Steel Full Mortise, Full Wrap Pin and Barrel Continuous Hinge
Starting at: $524.69Usage: Heavy Duty -
Best - 661HD UL Heavy Duty Full Mortise Concealed Continuous Geared Hinge
Multiple FinishesStarting at: $120.31
Usage: Heavy Duty

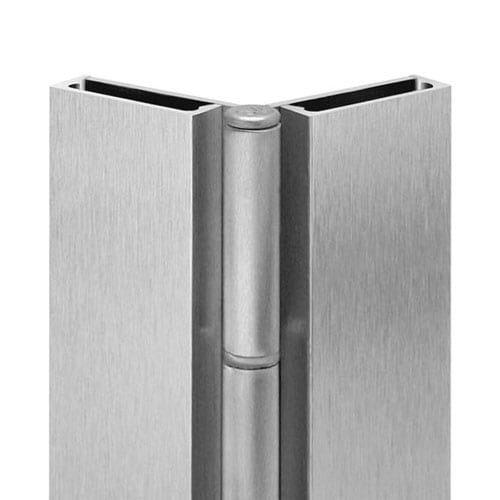

Select SL302 Heavy Duty Stainless Steel Pin & Barrel Full Surface Continuous Hinge
