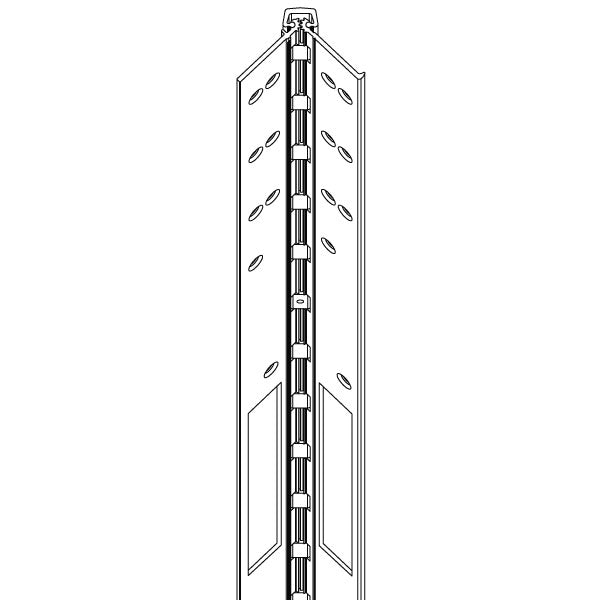

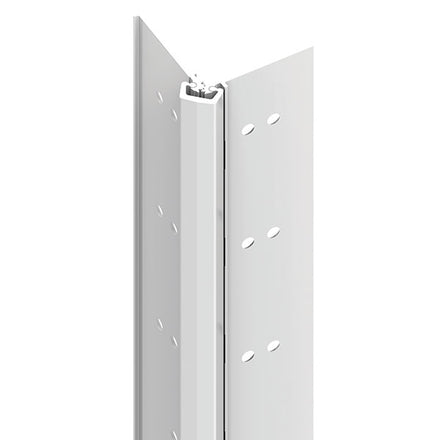

Ives 224HD-EPT Heavy Duty Full Mortise Continuous Gear Hinge Prepped for Electric Power Transfer

$273.06
Usually Ships:  20-30 Business Days
  • For 1-3/4" doors weighing up to 450 pounds
  • 1/16" door inset, 628 anodized aluminum finish
  • For use with Von Duprin EPT (EPT sold separately)

Available Options:

Clear

Product Overview

The design of a continuous hinge eliminates the gap between the door and the frame. The absence of gap also helps prevents finger from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of your opening investment.

  • Prepped for Von Duprin Electric Power Transfer (EPT-2 or EPT-10)
  • US28/628 Anodized Aluminum Finish
  • Door Edge Protector
  • 48" Maximum Door Width

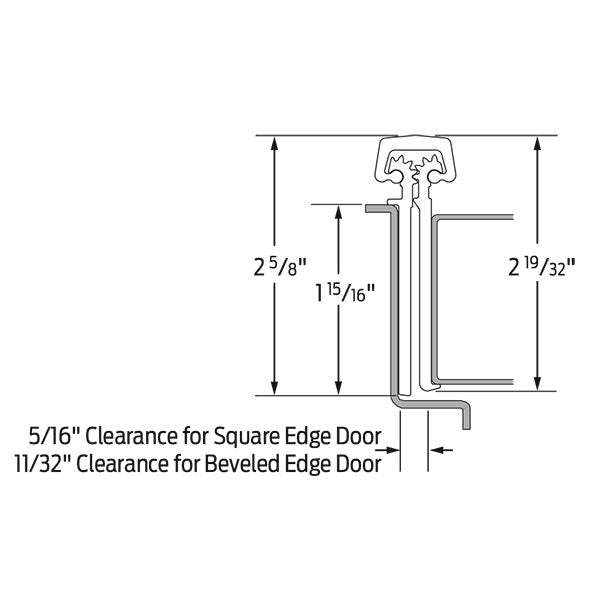

  • 1/16" Door Inset
  • Beveled or Square Edge Doors
  • 12-24 x 3/4" Steel self-drilling / self-tapping Phillips head screws
  • For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing

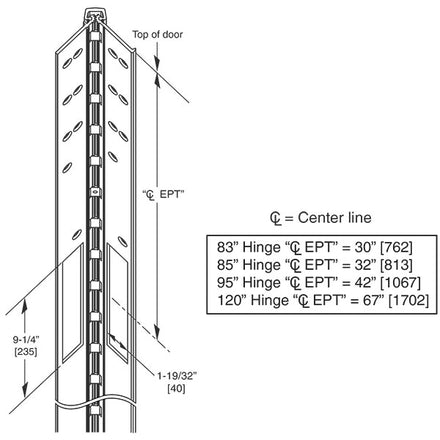

Prep Locations

  • 83" - Top of door to Centerline = 30"
  • 95" - Top of door to Centerline = 42"
Brand

Finishes

US28 (628) Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Continuous Hinge Type

Full Mortise (Concealed)

ANSI/BHMA Standard

Meets ANSI 156.26

Usage

Heavy Duty

Handing

Handed - LH, RH

Fire-Rating

UL Listed - Tested and approved UL 10C
