Corbin Russwin

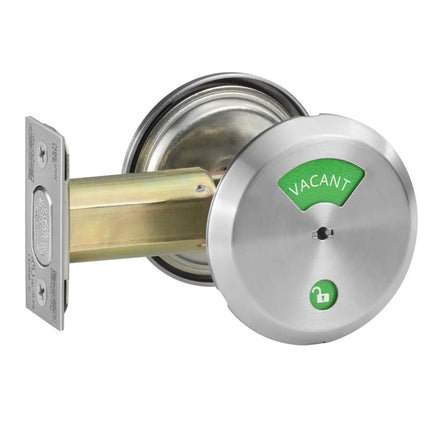

Corbin Russwin DL2261 Thumb Turn x Occupancy Indicator Deadbolt

$79.21
Usually Ships:  20-30 Business Days
  • Ideal for commercial restroom doors
  • Door bolt occupancy indicator x inside turn
  • Includes emergency release key

Available Options:

Clear

Product Overview

Corbin Russwin DL2261 Thumbturn x Indicator Deadbolt, Grade 2, 2-3/4" Backset, Double Indicator

The DL2200 Series is a Grade 2 cylindrical deadbolt designed for seamless integration with your standard door applications. Its innovative status indicator feature offers an instant visual cue on room occupancy, making it ideal for restrooms, conference rooms, or any space where privacy is essential. Enjoy peace of mind and enhanced functionality with this reliable and stylish solution.

Thumbturn x Indicator - ANSI E01112

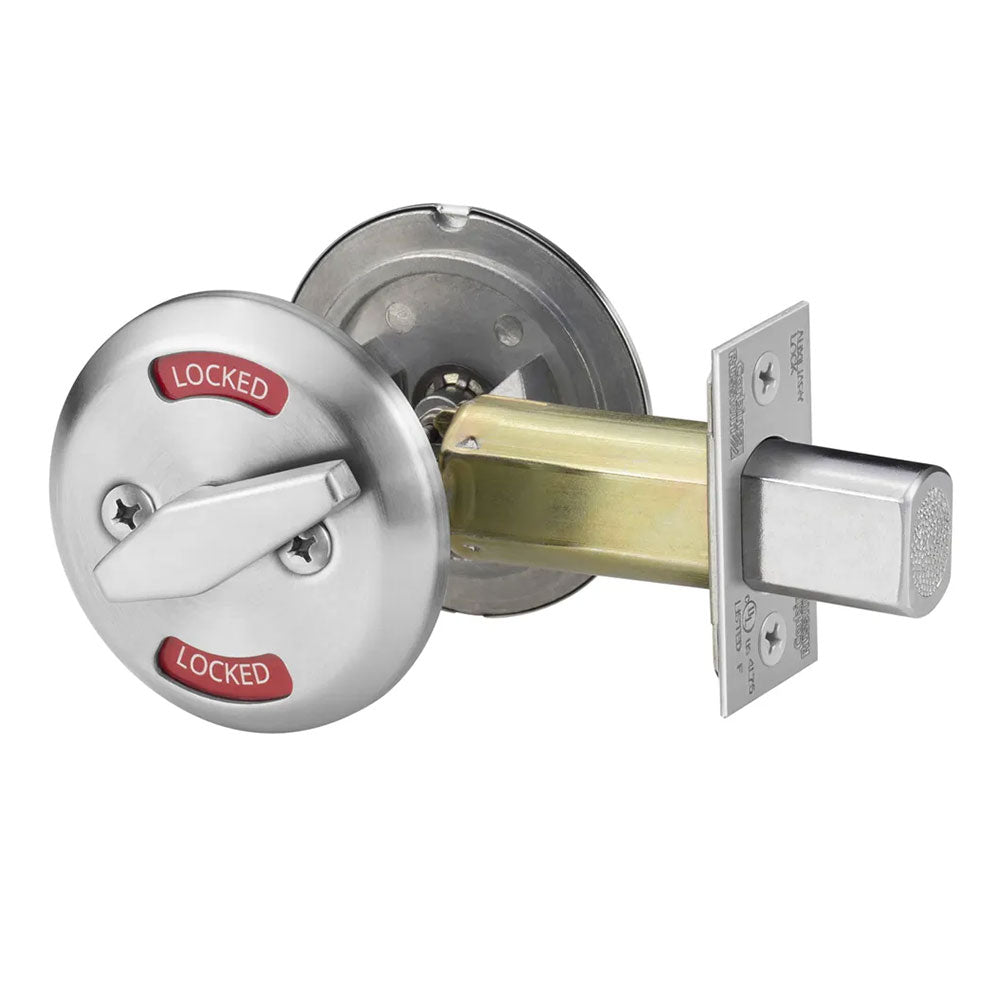

  • Thumb turn inside operates deadbolt
  • Emergency override key outside
  • Indicator standard both sides, specify indicator option code

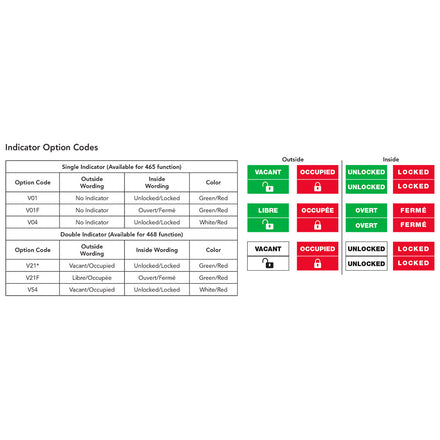

Indicator Codes

  • V21 Double Indicator - Vacant/Occupied - Green/Red (Outside) Unlocked/Locked - Green/Red (Inside)
  • V54 Double Indicator - Vacant/Occupied - White/Red (Outside) Unlocked/Locked - White/Red (Inside)

Typical applications

  • Restrooms
  • Quiet rooms
  • Nursing mother’s rooms
Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP - Black Suede Powder Coat, WSP - White Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

Deadbolt Type

Indicator

Indicator Option Code

V21 Vacant/Occupied Outside - Unlocked/Locked Inside (Green/Red), V54 Vacant/Occupied Outside - Unlocked/Locked Inside (White/Red)

ANSI/BHMA Standard

A156.36 Certified Grade 2

Usage

Medium Duty

Backset

2-3/4"

Bolt

Solid steel with hardened steel pin insert and nickel silver plating 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw

Strike

1-1/8” x 2-3/4“ square corner

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL-cUL Fire-Rated Up to 3 Hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
