Cal-Royal

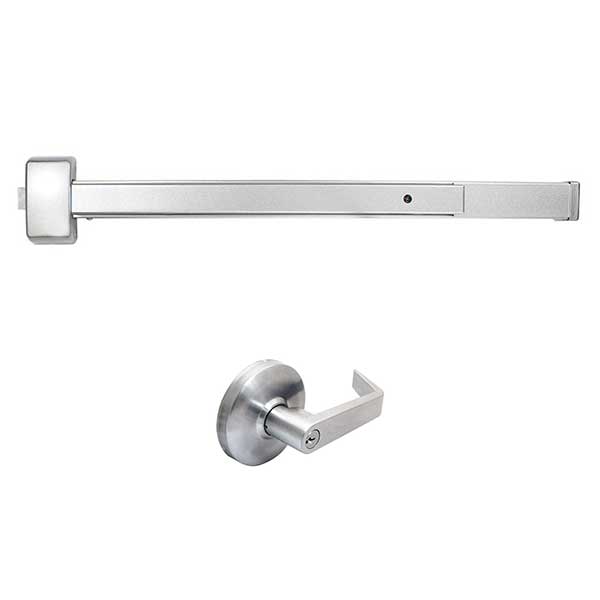

Cal-Royal A2200 x ENT00L Panic Rim Exit Device with Key-in-Lever Entrance Trim

$277.78
Usually Ships:  3-5 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Includes ENT00L key-in-lever trim
  • ANSI Function 08 – key locks or unlocks lever

Available Options:

Clear

Product Overview

Cal-Royal A2200 & AF2200 ADA Series Grade-1 Rim Type Exit Device with ENT00L Entry Lever Trim

Uncompromising security and safety in single and double fire exit doors

  • ANSI Function 08 – Entrance, key locks or unlocks lever – Operates as classroom function
  • ANSI A156.3, Grade-1 exit device
  • Retrofits Sargent 2828 and 2838 Series
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • F2200 UL Listed for Fire Exit Hardware (3 hours)
  • Chassis mounted unit construction
  • Non-handed for easy installation

ENT00L Lever Trim

  • Rose Diameter: 3-1/2″
  • Lever Length: 4-3/4″
  • Fits and Covers 2-1/8″ 161 Cutout
  • Clutch Mechanism
  • Non-Handed Design
  • Schlage C keyway
Brand

Finishes

DURO (Dark Bronze), L1 Black, ALUM (Aluminum)

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors), 2'0" (2'0" Door)

Usage

Medium Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire-Rating

2200EO: Non-Rated – F2200EO: UL Listed 3 Hour Rated

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Trim

ENT00L

Keyway

Schlage C Keyway

Stile Type

Wide (Standard)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

239 packed standard

Latchbolt

Stainless steel 3/4” throw

Projections

2-1/2" active, 1-3/4" dogged

Handing

Completely Reversible

Warranty

Limited Lifetime Warranty
