Cal-Royal

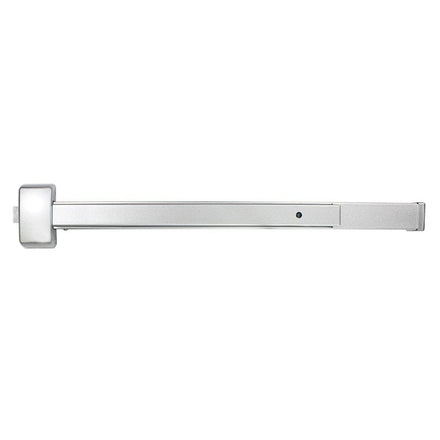

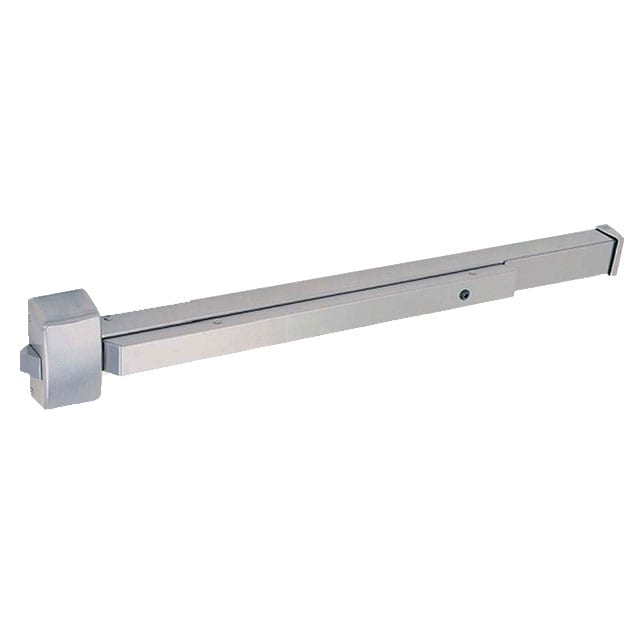

Cal-Royal A2200/AF2200 Rim Exit Device

$160.24
Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Retrofits Sargent 2828/2838 Series
  • Exit only (outside trim sold separately)

Available Options:

Clear

Product Overview

Cal-Royal A2200 & AF2200 ADA Series Grade-1 Rim Type Exit Device, Exit Only

Uncompromising security and safety in single and double fire exit doors

  • Exit Only - (Outside Trim Sold Separately)
  • ANSI A156.3, Grade-1 exit device
  • Retrofits Sargent 2828 and 2838 Series
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • F2200 UL Listed for Fire Exit Hardware (3 hours)
  • Chassis mounted unit construction
  • Non-handed for easy installation
Brand

Finishes

L1 Black, GOLD (Brass), ALUM (Aluminum), DURO (Dark Bronze)

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors), 2'0" (2'0" Door)

Usage

Medium Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Fire-Rating

2200EO: Non-Rated – F2200EO: UL Listed 3 Hour Rated

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Includes Trim

No

Stile Type

Wide (Standard)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

239 packed standard

Latchbolt

Stainless steel 3/4” throw

Projections

2-1/2" active, 1-3/4" dogged

Handing

Completely Reversible

Trim

None - Exit Only (Outside Trim Sold Separately)

Warranty

Limited Lifetime Warranty
