Cal-Royal

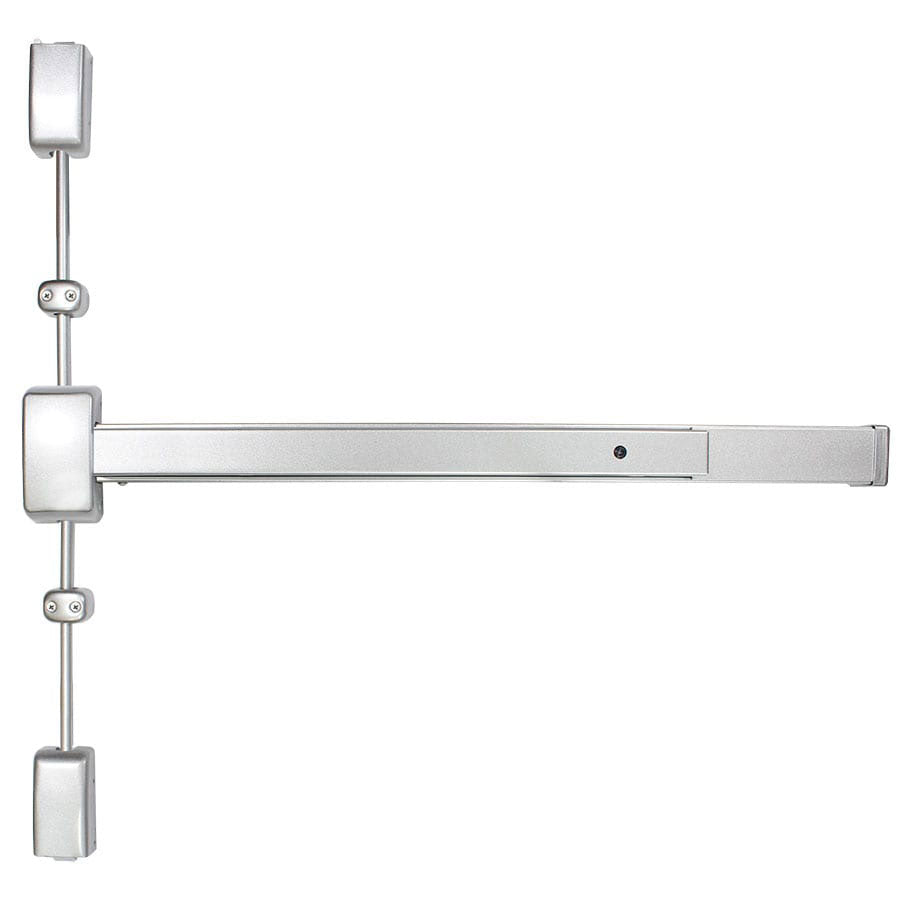

Cal-Royal A2260V Surface Vertical Rod Exit Device

$273.00
Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • For use with metal or wood doors
  • Exit only (outside trim sold separately)

Available Options:

Clear

Product Overview

Cal-Royal A2260 ADA Series Grade-1 Surface Vertical Rod Exit Device, Exit Only

Uncompromising security and safety in single and double fire exit doors.

  • Exit Only - (Outside Trim Sold Separately)
  • ANSI A156.3, Grade-1 exit device
  • Retrofits Sargent 12-2828 and 12-2838 Series
  • Conforms & Meets ADA Regulations
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes
  • Chassis-mounted unit construction

Models

  • 2260V 36" x 84" and F2260V 36" x 84" - (30"- 36" door width - Maximum cut down 6")
  • 2210V 24" x 84" and F2210V 24" x 84" - (22" - 24" door width - Maximum cut down 2")
  • 2280V 48" x 96" and F2280V 48" x 96" - (36"- 48" door width - Maximum cut down 12")
  • 2290V 36" x 96" and F2290V 48" x 96" - (30"- 36" door width - Maximum cut down 6")

exit_logos

Brand

Finishes

L1 Black, ALUM (Aluminum), DURO (Dark Bronze)

Size

36" x 84", 36" x 96", 48" x 96", 24" x 84"

Usage

Medium Duty

Handing

Handed - Field Reversible

ANSI/BHMA Standard

BHMA/ANSI A156.3, Grade 1 Certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

None

Dogging Feature

Half turn hex dogging standard, Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Device Type

Surface Rod Device

Warranty

Limited Lifetime Warranty
