Best Precision 5103-703A Rim Panic Exit Device with Night Latch Pull

$554.73

This item ships FREE! Usually Ships: 10-20 Business Days

ANSI/BHMA Grade-1 Certified
An economical pushbar exit device
Includes 703A pull trim (key locks & unlocks latchbolt)

Available Options:

Clear

Length
Fire-Rated

Add Cylinder	Yes No
Cylinder

Quantity:

Added to Cart

Best Precision 5103-703A Grade 1 Rim Exit Device, Wide Stile Pushpad, Field Reversible

The Precision 5000 Series is a cost-effective Grade 1 exit device option for applications such as retail, hospitality, mixed-used, multifamily and commercial office spaces. With a stainless steel chassis, it is durable and designed to fit the standard ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. And all Precision 5000 Series exit devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

689 Painted Aluminum Finish
Deadlocking Latchbolt Standard

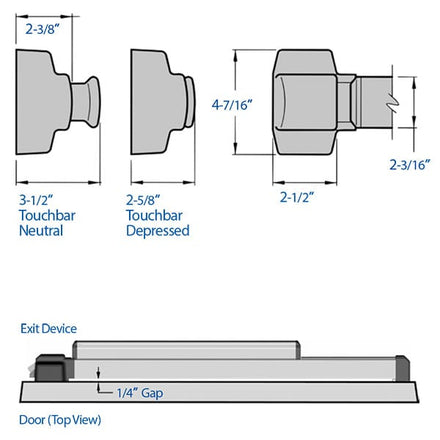

Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
Stock Sizes: 3′ and 4′ – Cut to size in field
5103 x 703A model: Non-fire-rated (with hex dogging)
FL5103 x 703A model: 3 Hour fire-rated (no dogging)

703A Pull Trim

ANSI Function: 03 (Key locks/unlocks pull)
Escutcheon plate size: 2-3/4″ x 10″
Projection: 2″
Non-handed
Requires rim cylinder (sold separately)

made-in-usa

Brand	Best Precision
Length	3'0" (2'7" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Finishes	689 Aluminum (Powder Coated)
Usage	Medium Duty
ANSI Grade	ANSI Grade 1
Function	Night Latch Pull
Cylinder	1-1/8" Rim Cylinder (Sold Separately)
Stile Type	Wide (Standard)
Handing	Non Handed – Completely Reversible
Latchbolt	Stainless steel, 3/4" throw – Deadlocking
Strike	S300, stainless steel, black powder coated
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Buy American Act Compliance	Meets Buy American Act - Made in USA
