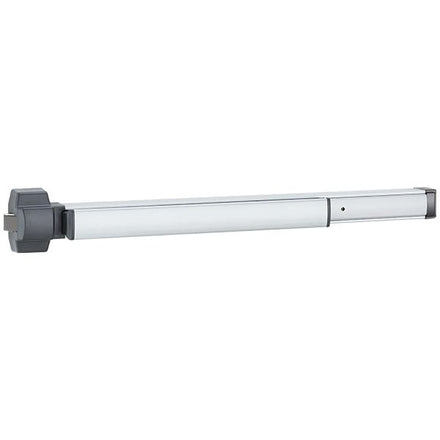

Best Precision 5102-702A Rim Panic Exit Device with Dummy Pull

$554.73

This item ships FREE! Usually Ships: 10-20 Business Days

ANSI/BHMA Grade-1 Certified
An economical pushbar exit device
Includes 702A pull trim (pull when dogged)

Available Options:

Clear

Length

Quantity:

Added to Cart

Best Precision 5102-702A Grade 1 Rim Exit Device, Wide Stile Pushpad, Field Reversible

The Precision 5000 Series is a cost-effective Grade 1 exit device option for applications such as retail, hospitality, mixed-used, multifamily and commercial office spaces. With a stainless steel chassis, it is durable and designed to fit the standard ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. And all Precision 5000 Series exit devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

689 Painted Aluminum Finish
Deadlocking Latchbolt Standard

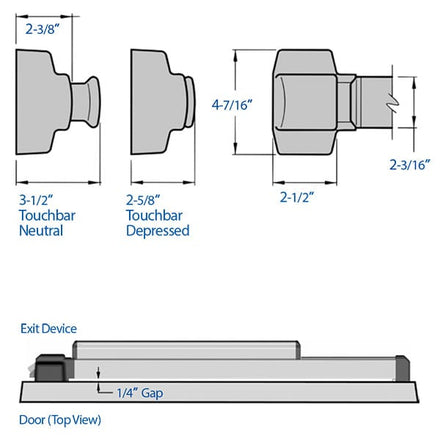

Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
Stock Sizes: 3′ and 4′ – Cut to size in field
5102 x 702A model: Non-fire-rated (with hex dogging)

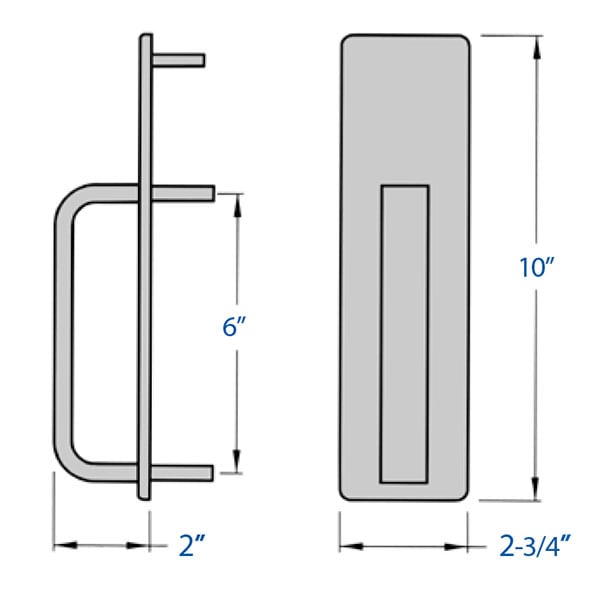

702A Pull Trim

ANSI Function: 02 (pull when dogged)
Escutcheon plate size: 2-3/4″ x 10″
Projection: 2″
Non-handed

made-in-usa

Brand	Best Precision
Length	3'0" (2'7" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Finishes	689 Aluminum (Powder Coated)
Usage	Medium Duty
ANSI Grade	ANSI Grade 1
Function	Dummy Pull
Stile Type	Wide (Standard)
Handing	Non Handed – Completely Reversible
Latchbolt	Stainless steel, 3/4" throw – Deadlocking
Strike	S300, stainless steel, black powder coated
Dogging Feature	Half turn hex dogging standard
Buy American Act Compliance	Meets Buy American Act - Made in USA
