Von Duprin

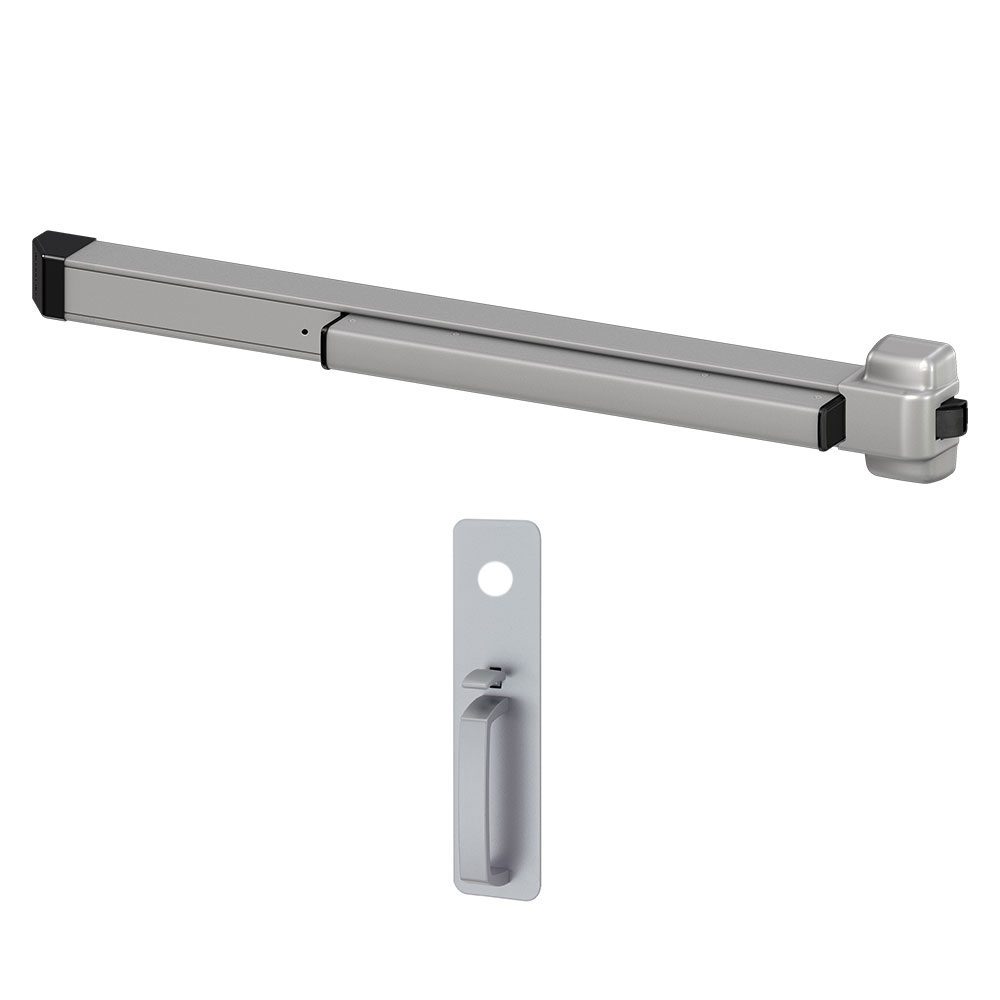

Von Duprin 22TP Rim Panic Bar Exit Device with Thumbpiece Pull

$528.44
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 05 (Key Locks/Unlocks)
  • Includes 230TP Thumbpiece Pull (cylinder sold separately)

Available Options:

Clear

Product Overview

Von Duprin 22TP Grade-1 Rim Exit Device with Trim, Thumbpiece Pull

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System.

230TP Thumbpiece Pull Trim

  • ANSI Function: 05
  • Escutcheon plate size: 3" x 12-1/16" x 3/32"
  • Projection: 2"
  • Pull center to center: 5-1/2"
  • Mortise cylinder must be ordered separately

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Fire-Rated

Non-Fire-Rated (w/ Dogging Feature), Fire-Rated (No Dogging)

Trim

230TP Thumbpiece Pull

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Hand

Non-handed

Fire-Rating

22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Finishes

689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)

Buy American Act Compliance

Meets Buy American Act - Made in USA
