Von Duprin

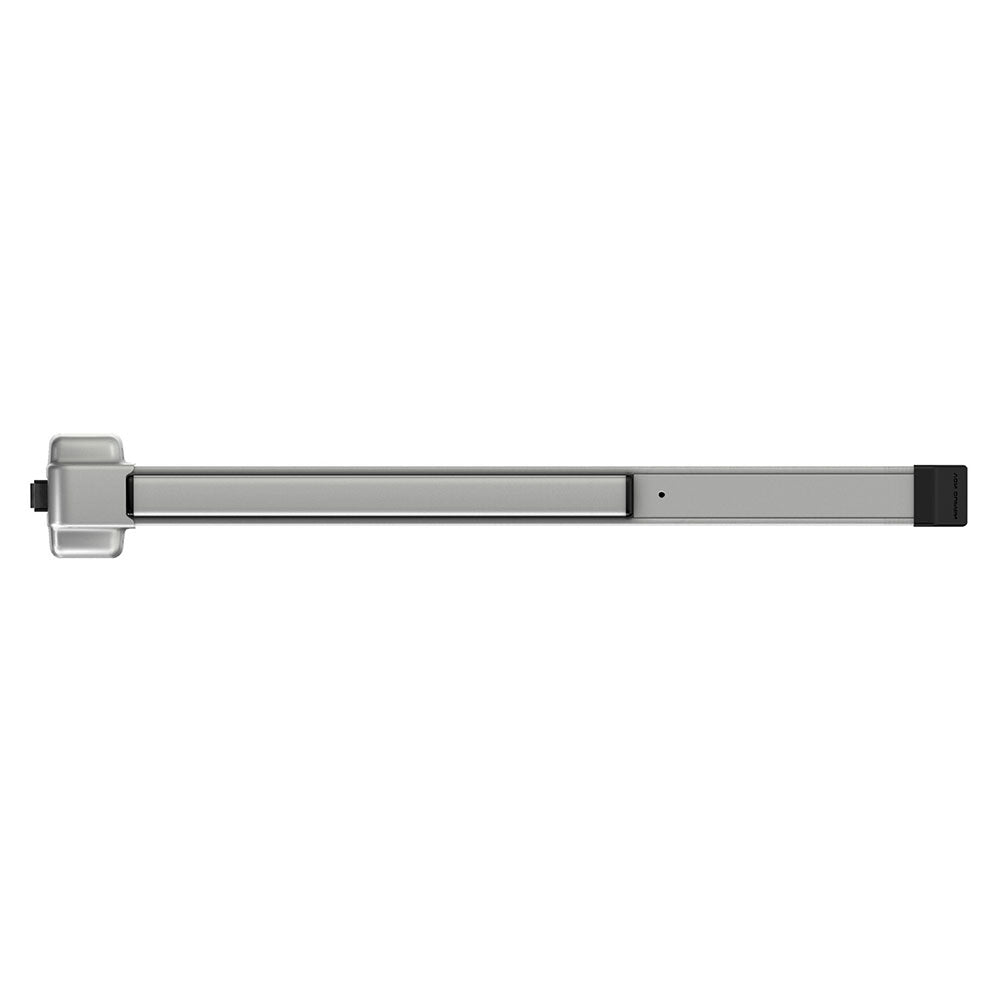

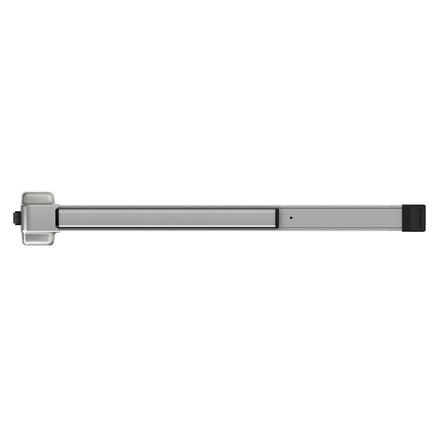

Von Duprin 22L Rim Panic Bar Exit Device with Lever

$530.08
This item ships FREE! Usually Ships:  Same Day
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 08 (Key Locks/Unlocks Lever)
  • Includes 230L Lever Trim (cylinder sold separately)

Available Options:

Clear

Product Overview

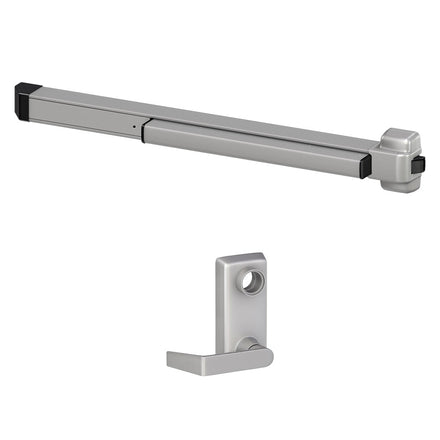

Von Duprin 22L Grade-1 Rim Exit Device with Trim, Lever with Escutcheon, Classroom Function

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

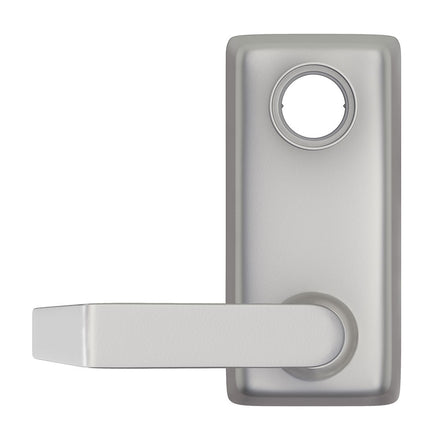

230L Entry Lever Trim

  • ANSI Function: 08
  • Escutcheon plate size: 3" x 6-3/8" x 15/16"
  • Projection: 2-5/8"
  • #06 lever style furnished standard
  • Mortise cylinder must be ordered separately

Brand

Finishes

695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated), 622 Matte Black

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Fire-Rated

Non-Fire-Rated (w/ Dogging Feature), Fire-Rated (No Dogging)

Trim

230L

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Hand

Device Non-Handed - Lever Field Reversible

Fire-Rating

22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Latchbolt

Deadlatching, 3/4" throw

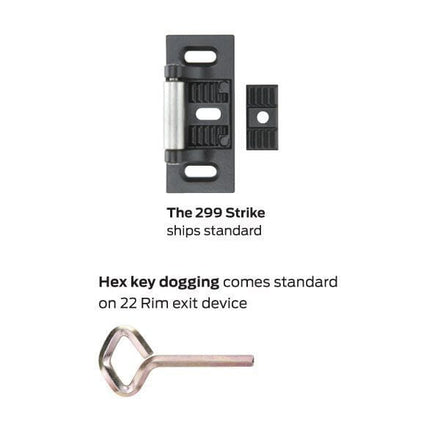

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Buy American Act Compliance

Meets Buy American Act - Made in USA
