Product Overview

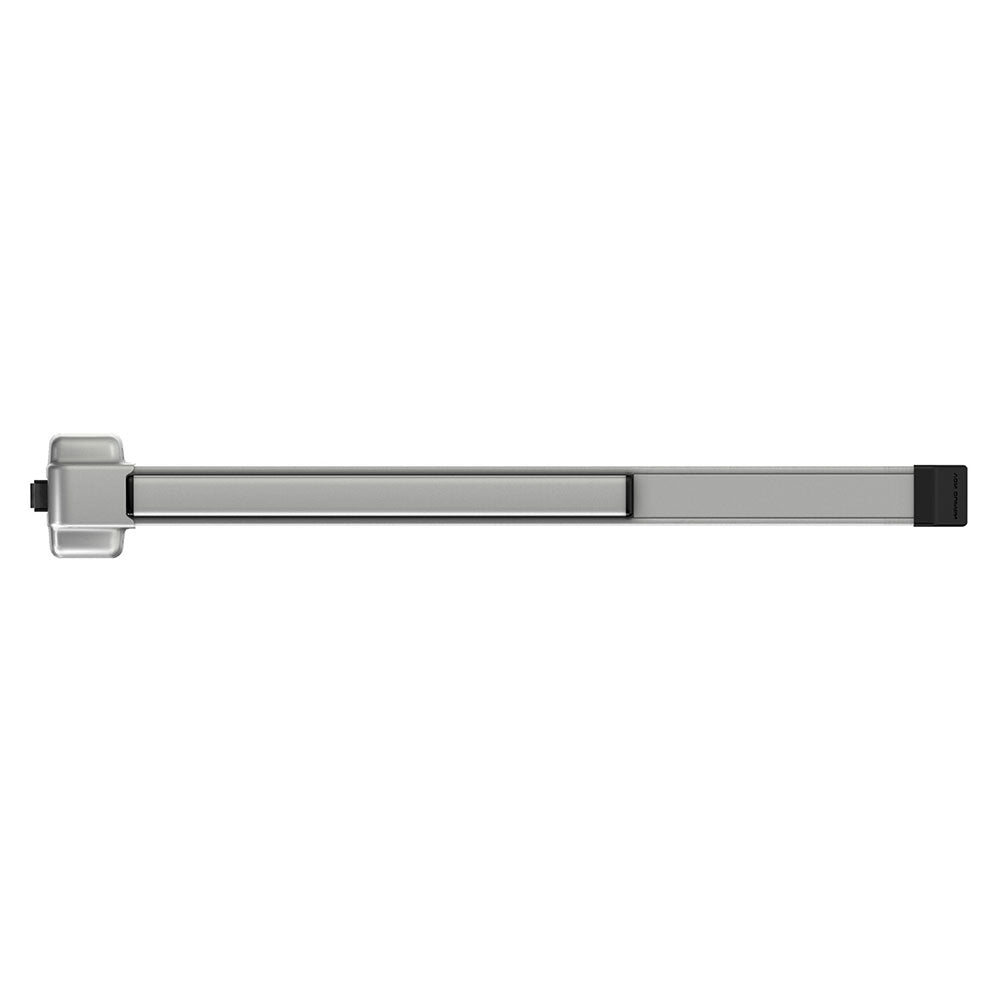

Von Duprin 22EO-F Grade-1 Fire-Rated Rim Exit Device, Exit Only
The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. The 22 Series is an economical alternative that incorporates a modern touch bar styling for any door type.
22-F Rim fire exit devices for all types of single doors up to 4' x 8' (1219 mm x 2438 mm) or 8' x 8' (2438 mm x 2438 mm) double doors with 9954 or 9854 mullion, UL listed for fire exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Fits door stiles as narrow as 4-3/8" (111 mm). The device is non-handed.
- Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
- ANSI A156.3, 2008 Grade-1
- UL listed fire hardware, Fire-rated up to 3 hours
- Covers stock hollow metal doors with 161 cutout
| Brand | |
|---|---|
| Finishes |
689 Aluminum (Powder Coated), 622 Matte Black, 526 Powder Coated Chrome, 695 Dark Bronze (Powder Coated) |
| Usage |
Medium Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2008 Grade 1 certified |
| Fire-Rating |
UL listed A or B label Fire-Rated (3 Hours) |
| Stile Type |
Wide (Standard) |
| Hand |
Non-handed |
| Strike |
299F fire-rated roller strike |
| Latchbolt |
Deadlatching, 3/4" throw |
| Fasteners |
Includes screws for metal and wood doors |
| Dogging Feature |
None |
| Projections |
Pushbar neutral: 3-1/4" - Pushbar depressed: 3" |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
