Trudoor

Trudoor DL2-BPT Blank Plate x Inside Thumbturn Deadbolt Lock

$33.83
Usually Ships:  Same Day
  • Meets and exceeds ANSI A156.2 Grade 2 standards
  • Inside turn x blank plate outside (ANSI E01112)
  • 2-3/4" fixed backset

Available Options:

Clear

Product Overview

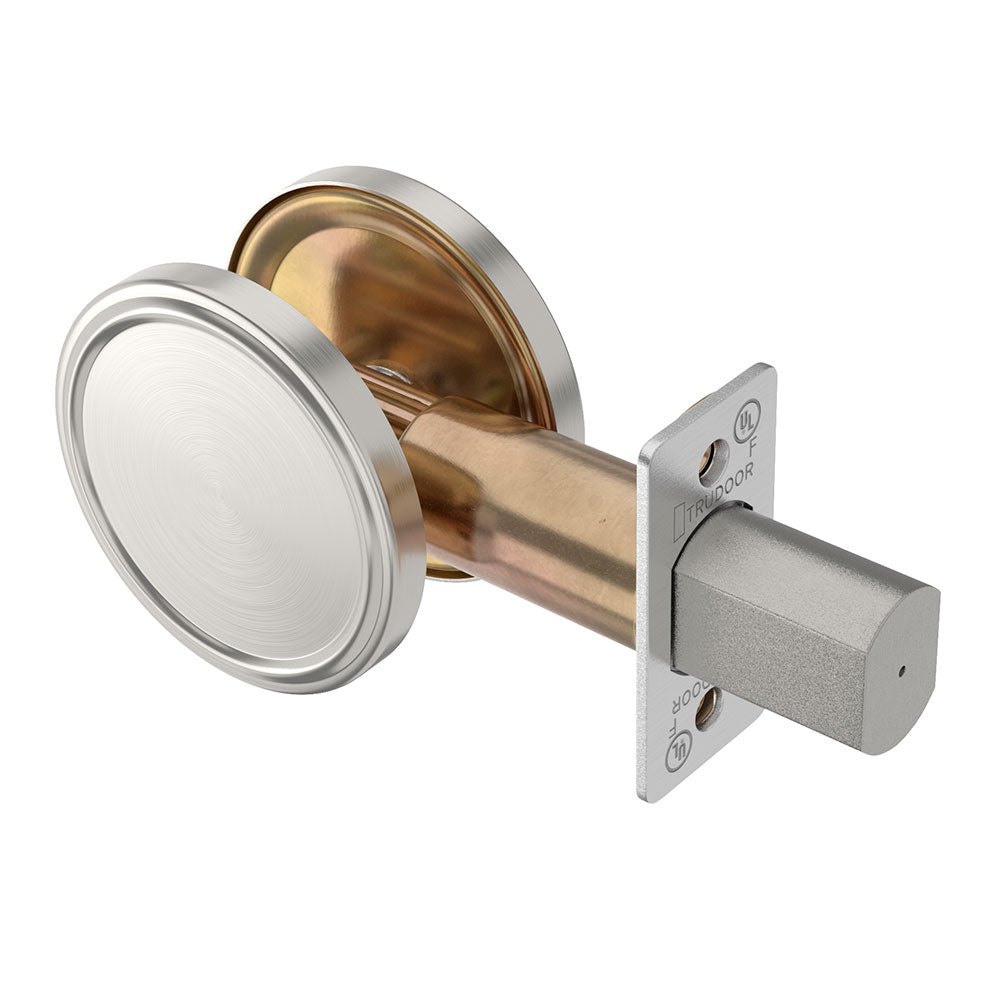

Trudoor DL2BPT Grade-2 Blank Plate x Inside Thumbturn Deadbolt Lock, 2-3/4" Backset

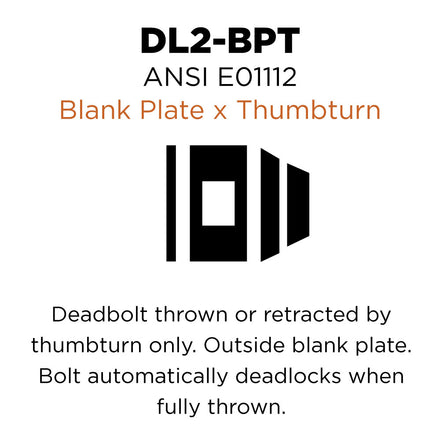

ANSI Function E01112: Deadbolt thrown or retracted by thumbturn only. Outside blank plate. Bolt automatically deadlocks when fully thrown.

  • Meets & exceeds ANSI A156.2, Grade 2 standards
  • For use with metal and wood doors
  • ADA Compliant thumb turn
  • 3-hour fire-rated (UL Listed)

trudoor-certs

Cross Reference

DL2-IND can be specified as a value-engineered substitute and/or replacement for: Accentra/Yale D242, Arrow D60, Cal-Royal ULID365, Corbin Russwin DL2260, Design Hardware D2-BP-T, Dorma D880, Falcon D261M, Hager 3220, PDQ BV125 BK, Sargent 479, Schlage B581, Tell DB20K25

Brand

Finishes

622 Matte Black, US26D (626) Satin Chrome

ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards

Usage

Medium Duty

Deadbolt Type

Turn Inside x Blank Plate

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/4"

Warranty

Limited Lifetime Warranty
