Product Overview

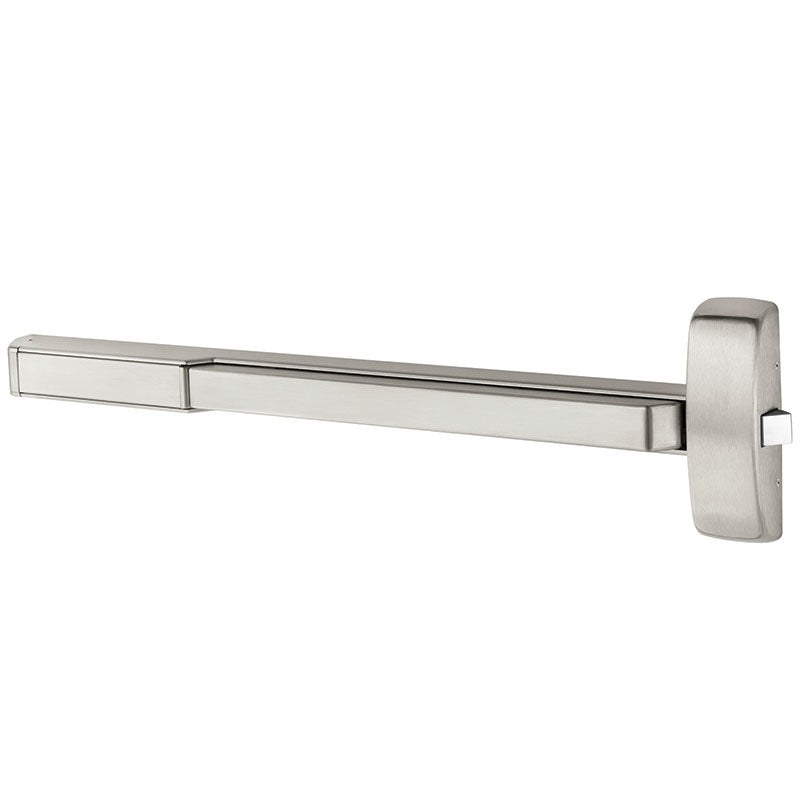

Sargent PE80 Series, 12-PE8888/PE8810 Grade 1 Rim Exit Bar, Fire-Rated, Wide Stile Pushpad, Multi-Function, Exit Only
The PE80 Series is the next generation of exit devices. Designed with innovation in mind, the powerful and exquisite exit device introduces new and enhanced features. Ideal for environments that require maximum strength and durable security solutions, all configurations exceed ANSI/BHMA Grade 1 requirements.
- Exit Only (Sargent Exit Device Trim sold separately)
- Universal, multi-function rim exit device
- Device & trim sold separately; easy to mix and match
- Flush pushbar and rail carrier design to minimize catch points
- No visible fasteners on rail assembly
- Flush end cap standard
- Designed for standard width stile applications on wood and metal doors
- 7 functions available as determined by the trim function
- UL305 (Panic) Listed
- UL10C (Fire) Listed
| Brand | |
|---|---|
| Finishes |
US4 (606) Satin Brass, BSP/32D Mixed Finish, Black Suede Powder Coat w/ Satin Stainless Steel Push Bar, BSP - Black Suede Powder Coat, US10 (612) Satin Bronze, 32D/BSP Mixed Finish, Satin Stainless Steel w/ Black Suede Powder Coat Push Bar, US3 (605) Bright Brass, US9 (611) Polished Bronze, US32 (629) Bright Stainless Steel, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US32D (630) Satin Stainless Steel, WSP - White Suede Powder Coat |
| Length |

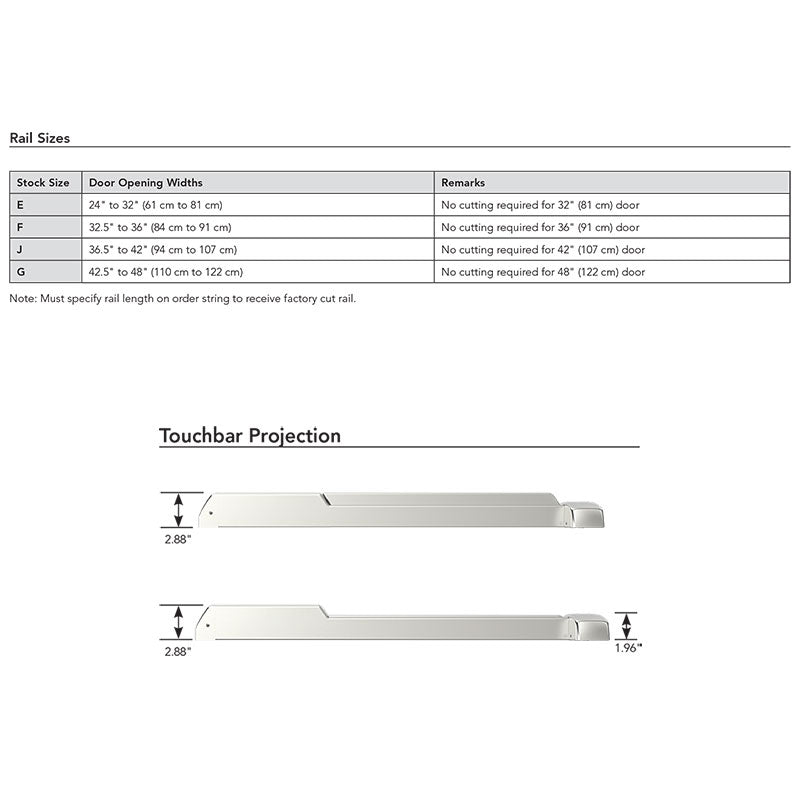

F - 36" (for 33" to 36" Doors), E - 32" (24" to 32" Doors), J – 42" (for 37" to 42" Doors), G - 48" (for 43" to 48" Doors) |
| Stile Type |
Wide (Standard) |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 - Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
UL/cUL listed up to 3 Hours |
| Handing |
Non Handed – Completely Reversible |
| Dogging Feature |
None |
| Latchbolt |
Stainless steel 3/4” throw |
| Strike |
649 Strike supplied standard |
| Touchbar Projection |
2.88" |
| Trim |
None - Exit Only (Outside Trim Sold Separately) |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Warranty |
10 Years |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
