Product Overview

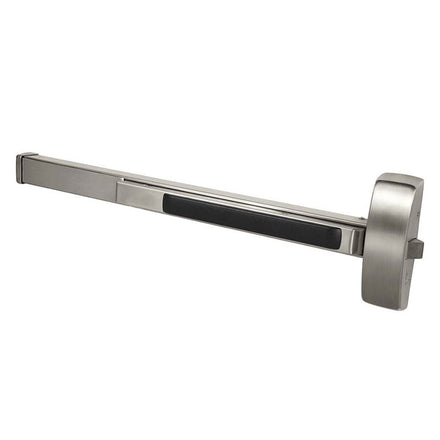

Sargent 12-8888/12-8810 Grade 1 Fire-Rated Rim Exit Bar, Wide Stile Pushpad, Multi-Function, Exit Only
Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.
- 12- option = UL Listed Fire-Rated
- Exit Only (outside trim sold separately)
- Universal, multi-function rim exit device
- Device & trim sold separately; easy to mix and match
- Architectural finish with black Lexan touchpad
- Designed for standard width stile applications on wood and metal doors
- 7 functions available as determined by the trim function
- UL10C (Fire) Listed
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel, US10B (613) Oil Rubbed Bronze, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP - Black Suede Powder Coat |
| Length |
F - 36" (for 33" to 36" Doors), E - 32" (24" to 32" Doors), J – 42" (for 37" to 42" Doors), G - 48" (for 43" to 48" Doors) |
| Stile Type |
Wide (Standard) |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 - Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
12-8888 Model UL10C Fire-Rated |
| Includes Trim |
No |
| Handing |
Non Handed – Completely Reversible |
| Dogging Feature |
None |
| Latchbolt |
Stainless steel 3/4” throw |
| Strike |
649 Strike supplied standard |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
