Product Overview

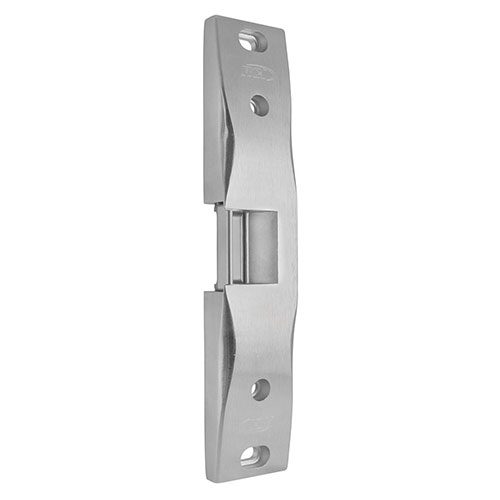

RCI 0162 32D Electric Strike, 3/4 In. Surface for Rim Devices, 12/24VDC, 12 to 24VAC, Fail Secure, Satin Stainless Steel
The 0162 electric strike accommodates ½” to ¾” latch projection and is designed for use with Pullman latch rim exit devices. As a completely surface mounted strike the RCI 0162 requires no cutting of the door frame. The rugged stainless-steel strike accommodates hollow metal, aluminum and wood door frames. Its heavy-duty housing is reinforced to eliminate twisting in the case of imperfect frames. The one-piece conventional keeper promotes even load distribution for increased security in the event of an attempted forced entry.
1-3/4”W x 9”H x 3/4”D
- Completely surface-mounted – no frame cutting required
- Accommodates 1/2" to 3/4" latch projection
- Mounting spacer included to provide enhanced latch engagement
- Stainless steel ensures superior strength and creates a sleek aesthetic design
- Horizontal adjustment ensures proper latch positioning to compensate for door misalignment – up to 1/4"
- Conventional keeper design (one moving part)- promotes even load distribution
- Plug-in wire connectors
- Lockdown holes for secure mount
- HEX socket head cap screws for added support
- Installation tool included (HEX key)
- Non-handed (featuring horizontal solenoid design)
- 1/16" mounting spacer for additional latch engagement included
- 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
- 1,500lbf Static 70ft-lb Dynamic
- 250,000 Cycles
- Fail-Secure
- Optional Latch Monitor
- 5 Year Limited Warranty
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles |
| Voltage |
500mA Field-Selectable 12/24VDC & 12-24VAC |
| Mode |
Fail-Secure |
| Lock Type Compatibility |
Rim Exit Device |
| Part Type |
Complete Electric Strike |
