Pemko PemGuard 353 Full Height Security Astragal for Outswing Doors

$221.04
Usually Ships:  5-10 Business Days
  • Full-height interlocking, secures door-jamb gap, preventing prying and forced entry
  • Designed for metal, wood, and storefront outswing doors 1-5/8" to 2" thick
  • Versatile solution for both single doors and double doors with one active leaf

Available Options:

Clear

Product Overview

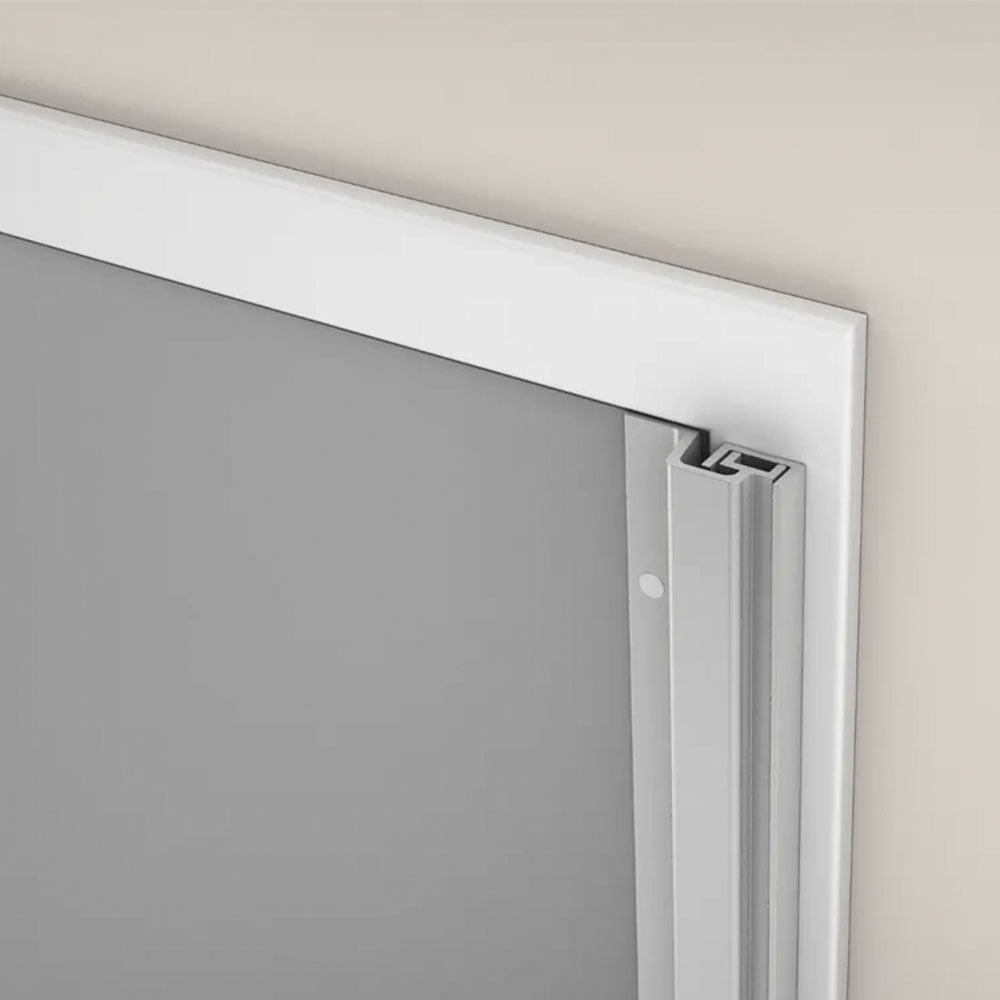

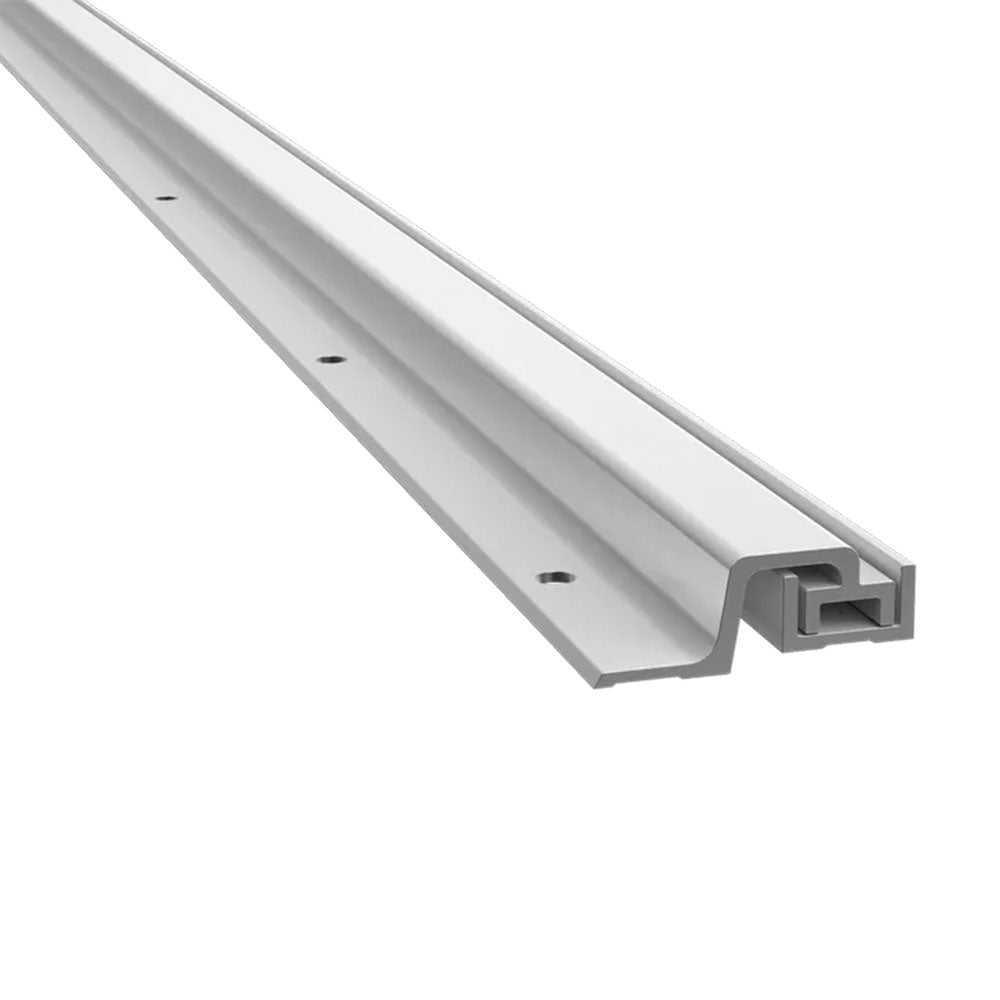

Pemko PemGuard 353_ Full Height Security Astragal for Outswing Doors

The PemGuardTM 353 Security Astragal is designed to enhance outswing door security by minimizing pry points and resisting forced entry. Its heavy-duty, two-piece design is made from durable 6063-T6 aluminum, offering superior strength and tamper resistance. Ideal for both single and double doors, it also reduces the need for field modifications—perfect for new construction or retrofit projects.

Features

  • Full-height interlocking feature secures door-jamb gap, preventing prying and forced entry
  • Designed for metal, wood, and storefront outswing doors 1-5/8" to 2" thick
  • Two-piece, patent-pending design
  • Covers the strike plate
  • Horizontal adjustability
  • Tamper proof thru bolts
  • Tek screws
  • Compatible with P491 EPDM sponge neoprene tape
  • Available in 84" and 96"* lengths (cut to size in field)

* Oversize shipping fee applies to 96" length

Benefits

  • Helps prevent tampering and unauthorized access
  • Versatile solution for both single doors and double doors with one active leaf
  • Simplifies installation and maintenance while delivering enhanced performance and innovation
  • No strike plate prep required
  • Provides a secure, tailored fit
  • Ensures lasting protection
  • Quick and reliable fastening
  • Provides superior weatherstripping, resists deterioration, and remain flexible at sub-zero temperatures

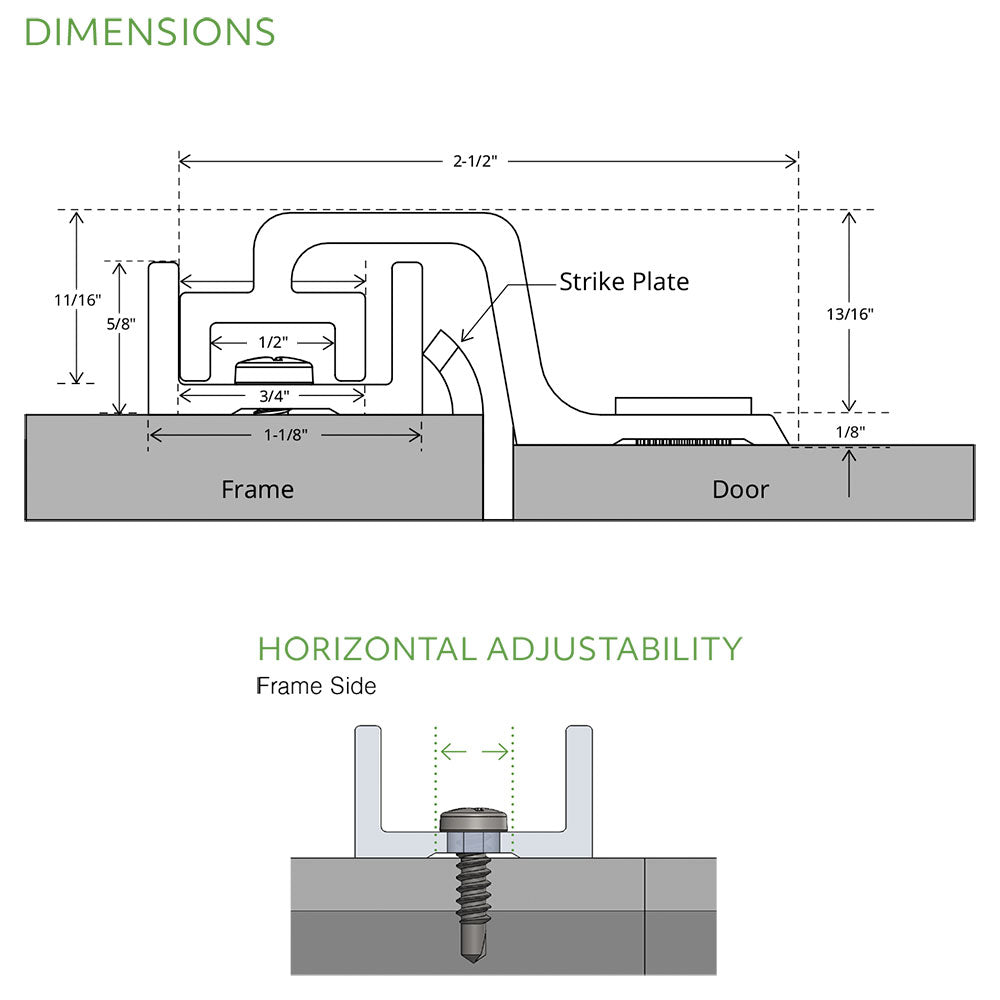

Specifications

  • Base Material: Aluminum
  • Fasteners: #8 Tek screws and 3/8" thru bolts
  • Maximum Length: 95"
  • Minimum Length: 83"
  • Maximum Width: 2 3/4"
  • Minimum Width: 2 5/8"
  • Maximum Door Thickness: 2"
  • Minimum Door Thickness: 1-5/8"
  • Overall Height: 1"

made-in-usa

Brand

Finishes

BSP - Black Suede Powder Coat, C – Clear Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Material

6063-T6 Aluminum

Buy American Act Compliance

Meets Buy American Act - Made in USA
