Pemko

Pemko 2005V OptiCoat Latching Panic Saddle Threshold with Eco-V Vinyl Insert - 5" Wide x 1/2" High

$106.45
Usually Ships:  20-30 Business Days
  • 5" wide x 1/2" high, ADA compliant, fire-rated
  • Bumper seal threshold with OptiCoat sublimation finish technology
  • High-end finishes that mimic the natural beauty of wood or marble

Available Options:

Clear

Product Overview

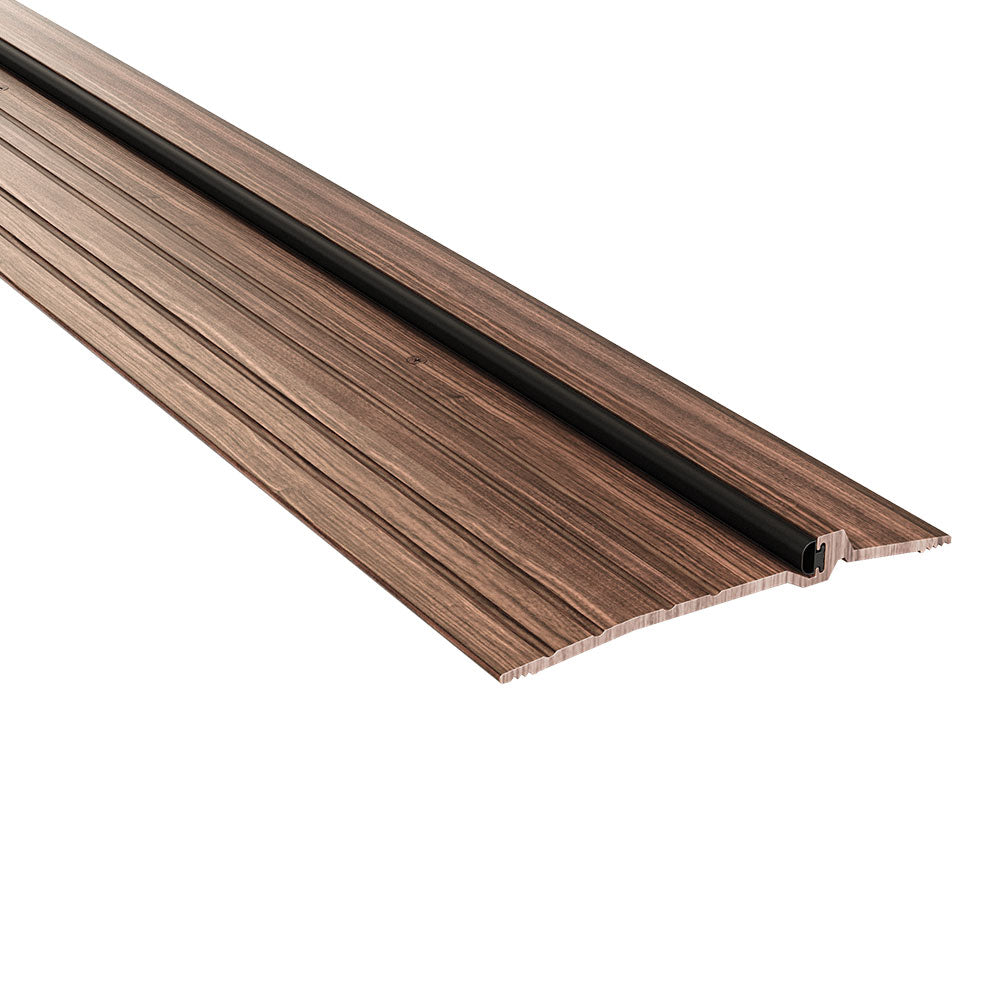

Pemko 2005_V Latching Panic Saddle Threshold with Eco-V Vinyl Insert, OptiCoat Finish

The 2005 Series Latching Panic Saddle Threshold has a 5" width and allows for a 3/8" door clearance. It's designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket Eco-V (V). This threshold is sound air infiltration tested, fire rated, and BHMA certified.

Pemko’s OptiCoat™ finishes bring the rich look of natural wood and marble to quality door hardware.

OptiCoat™ sublimation finish technology is revolutionizing aesthetics by transforming ordinary metals into stunning, high-end finishes that mimic the natural beauty of wood or marble. Through an advanced sublimation process, OptiCoat infuses realistic textures and patterns into metal surfaces, creating finishes that are not only visually striking but also incredibly durable.

With Pemko’s OptiCoat™ finishes, the elegance of marble and the warmth of wood are now achievable on door hardware accessories. This opens up more design options for thresholds and sliding door fascia, combining style, strength, and flexibility to create a high-end finish that looks great and lasts.

OptiCoat is a game-changer for projects where looks and details matter, like historic restorations or boutique hotels. It helps designers match hardware finishes with the overall style of the space, whether traditional or modern, while still meeting performance needs.

  • 12 wood finishes and 1 marble finish offered
  • High corrosion resistance
  • High scratch resistance
  • Termite and insect proof
  • ADA accessible
  • Made from thick, durable metal
  • Suites with multiple ASSA ABLOY brands
  • Not highly flammable like wood (aluminum base - maintains fire-rating)
  • Finish warranty: 2 years
  • Allow 3/8" Door Clearance
  • Width: 5” (127.0 mm)
  • Height: 1/2” (12.7 mm)
  • Lengths: 36", 48", 72", *96" and *120"

*excessive length shipping fee applies

Ratings

  • Barrier-Free
  • BHMA Certified
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

pemko-ratings-threshold







Warranty Info

Warranted for two (2) years; normal wear is not included in coverage.

OptiCoat thresholds are made to order and are non-returnable.

Brand

Finishes

ACS - Auburn Cherry OptiCoat, AOS - Amber Oak OptiCoat, BCS - Burnt Sienna Cherry OptiCoat, BOS - Blonde Oak OptiCoat, CPS - Casselman Pine Opticoat, EWS - Espresso Walnut OptiCoat, MCS - Maple Cherry OptiCoat, SCS - Sunrise Cherry OptiCoat, SOS - Scarlett Oak OptiCoat, SPS - Somerset Pine OptiCoat, TOS - Tangerine Oak OptiCoat, TWS - Toasted Walnut OptiCoat, WMS - White Marble OptiCoat

Length

36", 48", 72", 96"

Width

5"

Height

1/2"

ANSI/BHMA Standard

ANSI/BHMA A156.21

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
