Trudoor

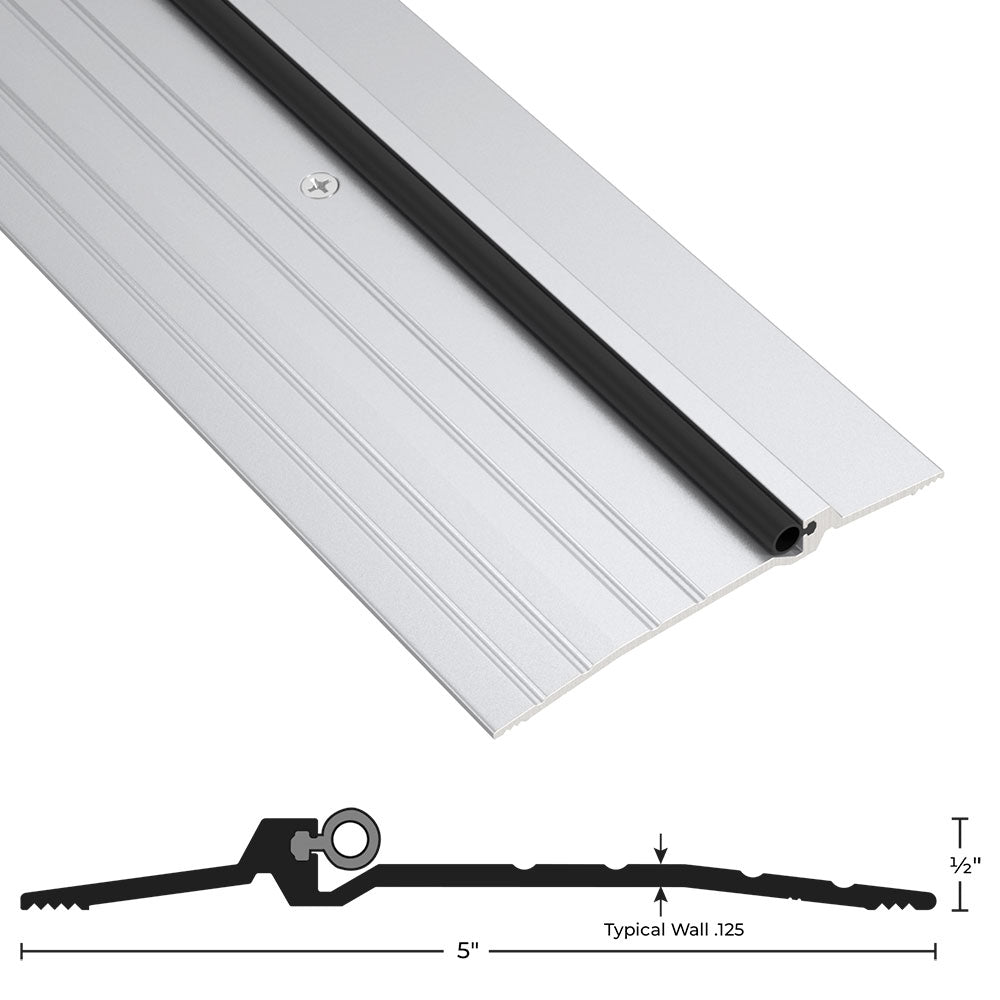

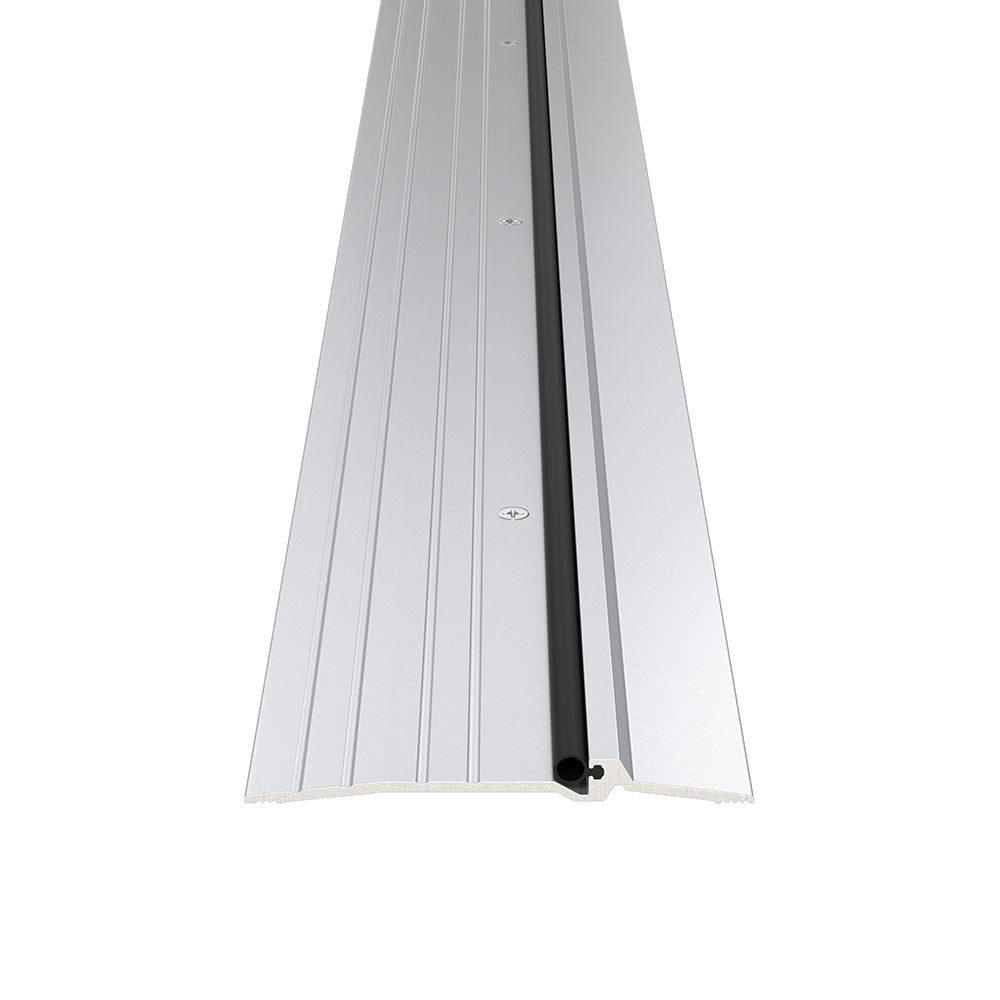

Trudoor TD-BTH5 Aluminum Bumper Threshold with Vinyl Seal – 5″ Wide x 1/2″ High

Trudoor's Choice for bumper seal thresholds
$38.37
Usually Ships:  Same Day
  • 5″ Wide x 1/2″ High
  • Includes a vinyl seal
  • Provides a doorstop and seal at bottom of door

Available Options:

Clear

Product Overview

Trudoor TD-BTH5A ADA Compliant Commercial Bumper Seal Threshold, 5″ W x 1/2″H, Mill Finish Aluminum, Vinyl Seal

Saddle thresholds are symmetrically shaped and designed to seal the area under a door while creating a more finished look for commercial applications.

  • Includes a vinyl seal
  • ADA accessible
  • Made from thick, durable metal
  • Weight: .85 lbs./ft.
  • Width: 5" (127.0 mm)
  • Height: 1/2" (12.7 mm)
  • Lengths: 36″, 48" and 72″

Ratings

  • Barrier-Free (ADA): Meets the requirements of ADAAG-2010 and ANSI A117.1-2009 – Overall height is no greater than 1/2″
  • Fire Rated: UL10B and UL10C Positive Pressure
  • Air Infiltration: Meets ASTM E283

Cross-reference: Air Louvers WT-S483, Cal-Royal PST-201A, Design Hardware TH5P-ADA-MF, Hager 520S, NGP 896V, Pemko 2005AV, Reese S483, Zero 65A

Brand

Finishes

Mill Finish Aluminum

Length

36", 48", 72"

Width

5"

Height

1/2"

Fire-Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors

Buy American Act Compliance

Meets Buy American Act - Made in USA

Warranty

Limited Lifetime Warranty
