Product Overview

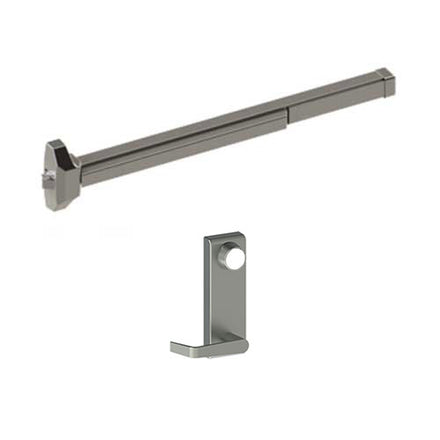

Hager 4700 Series Grade-1 Rim Exit Device x 47CE Cylinder Escutcheon Lever Trim, Less Cylinder
The Hager 4700 Series is designed and engineered to provide superior performance on standard stile doors in a range of light commercial and standard duty applications. Properly applied and maintained Hager 4700 Series Exit Devices and Trim are backed by a five-year warranty. Made with superior materials and with dead locking stainless steel latchbolts, the 4700 Series Exit Devices provide necessary security and performance at economy pricing.
Hager 4700 Series Exit Devices are BHMA Certified Grade 1 and meet Life Safety Codes and Fire Requirements.
- ANSI Function 08, key locks/unlocks
- ALM - Aluminum finish
- Projection: 2-7/16" in undogged position, 1-3/16" in dogged position
- Stile Width: 4-1/2''- minimum stile width required for single door and 5/8" stop
- UL305 Listed for panic hardware
- Fire-rated model: UL/cUL Listed for up to 3 hours for “A” label single doors
47CE Lever Trim
- ANSI Function: 08 (Key locks or unlocks lever)
- Lever Design: WTN Withnell
- Base Size: 8″ x 2-5/8″
- Projection: 2-3/4″
- Cylinder Type: Mortise cylinder (sold separately)
| Brand | |
|---|---|
| Finishes |
BLK Black, DBZ Sprayed Dark Bronze, ALM Sprayed Aluminum |
| Length |
3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| Usage |
Light Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2014 Grade 1 |
| Fire-Rating |
4701R-F Model - UL/cUL Listed for up to 3 hours for "A" labeled doors |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Trim |
47CE-WTN |
| Cylinder |
Requires mortise cylinder with standard cam (sold separately) |
| Latchbolt |
5/8" (16 mm) throw, pullman type with automatic dead-latching, stainless steel |
| Strike |
Solid stainless steel |
| Door Thickness |
1-3/4" |
| Stile Type |
Wide (Standard) |
| Fasteners |
Wood and machine screws, Thru-bolts |
