Product Overview

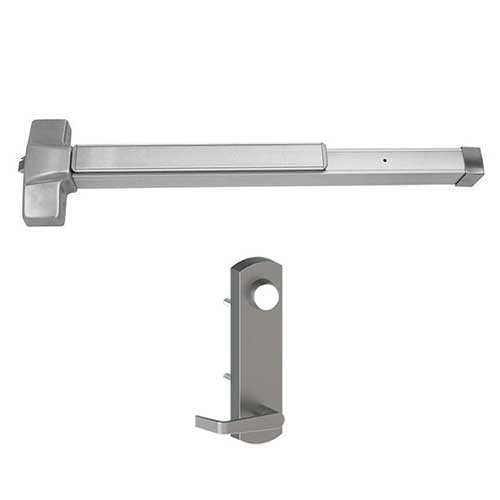

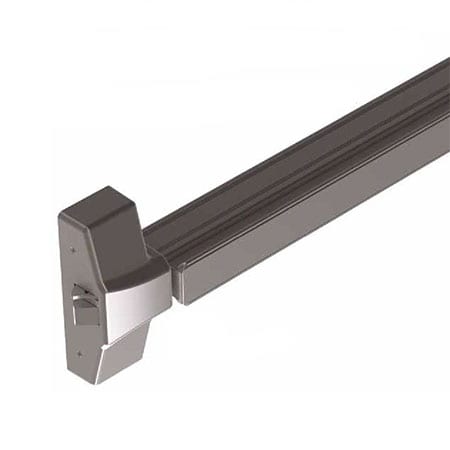

Hager 4500 Series Grade-1 Rim Exit Device x 45CE Cylinder Escutcheon Lever Trim, Less Cylinder
Hager 4500 Series Exit Devices are ideal for use in heavy-duty commercial applications including office buildings, medical facilities, schools, and hospitality structures.
The 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements.
- ANSI Function 08, key locks/unlocks
- BHMA Certified Grade 1 and meets life safety codes
- UL305 Listed for Panic Hardware (F Model UL Listed for Fire Hardware, 3-Hour Rated)

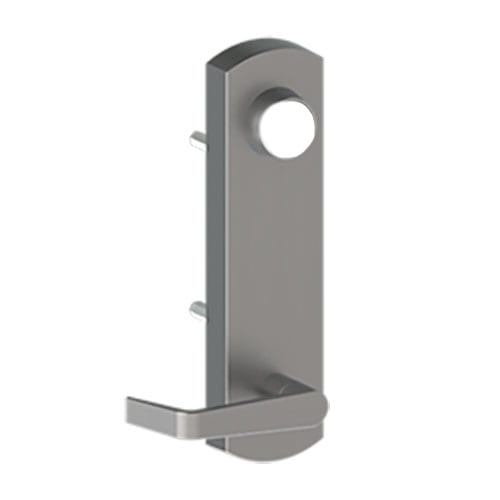

45CE Lever Trim
- ANSI Function: 08 (Key locks or unlocks lever)
- Lever Design: WTN Withnell
- Base Size: 10-3/4″ x 2-3/4″
- Projection: 2-11/16″
- Cylinder Type: Mortise cylinder (sold separately)
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, BLK Black |
| Length |
3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| Trim |
45CE-WTN |
| Cylinder |
Requires mortise cylinder with standard cam (sold separately) |
| Handing |
Device Non-Handed – Lever Ships as RHR (Field Reversible) |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2014 Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
4501R: Non-Fire-Rated – 4500R-F: UL Listed A or B label Fire-Rated (3 Hours) |
| Latchbolt |
3/4” throw, pullman type with automatic dead-latching, stainless steel |
| Strike |
Solid stainless steel |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Stile Type |
Wide (Standard) |
| Door Thickness |
1-3/4" |
| Warranty |
Limited Lifetime Warranty |
