Product Overview

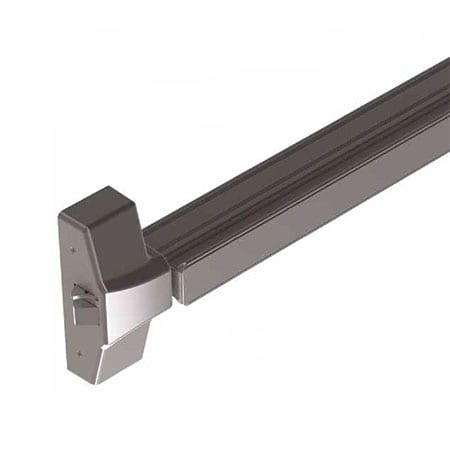

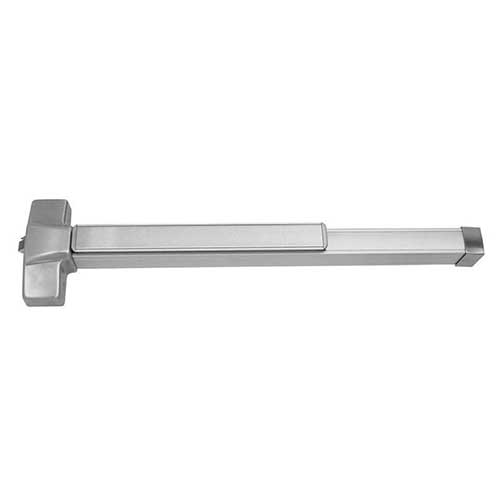

Hager 4500 Series Grade-1 Rim Exit Device, Fire-Rated, Exit Only
Hager 4500 Series Exit Devices are ideal for use in heavy-duty commercial applications including office buildings, medical facilities, schools, and hospitality structures. The Hager 4500 Series is designed and engineered to provide a lifetime of superior performance on doors in heavy-duty commercial applications. Properly applied and maintained Hager 4500 Series Exit Devices and Trim are backed by a lifetime warranty, providing peace of mind from distributor to building owner.
Hager 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements. The 4500 Series Rim and Surface Vertical Rod devices meet ANSI requirements to be listed as Severe Windstorm Components and are approved for High Velocity Hurricane Zone areas.
Extruded aluminum construction, stainless steel push bar cover, die cast caps and covers, and dead locking stainless steel Pullman type latchbolts provide premium security and performance at value pricing.
- Exit Only Device (Hager Exit Device Trim Sold Separately)
- BHMA Certified Grade 1 and meets life safety codes
- UL/cUL Listed for up to 3 hours for "A" label single doors
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Warnock Hersey listed for up to 3 hours with fire-rated removable mullion - Complies with ANSI A117.1 for accessible buildings and facilities
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US10B (613) Oil Rubbed Bronze, BLK Black |
| Length |
3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2014 Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
UL/cUL Listed for up to 3 hours |
| Latchbolt |
3/4” throw, pullman type with automatic dead-latching, stainless steel |
| Strike |
Solid stainless steel |
| Dogging Feature |
None |
| Stile Type |
Wide (Standard) |
| Door Thickness |
1-3/4" |
| Warranty |
Limited Lifetime Warranty |
