Norton

Norton 1601 Door Closer

$122.22
Usually Ships:  Same Day
  • Meets ANSI A156.4 Grade 1 Standards
  • Fully Adjustable Spring Power - Size 1 to 6
  • Tri-Packed for Regular, Top Jamb, and Parallel Arm Installations

Available Options:

Clear

Product Overview

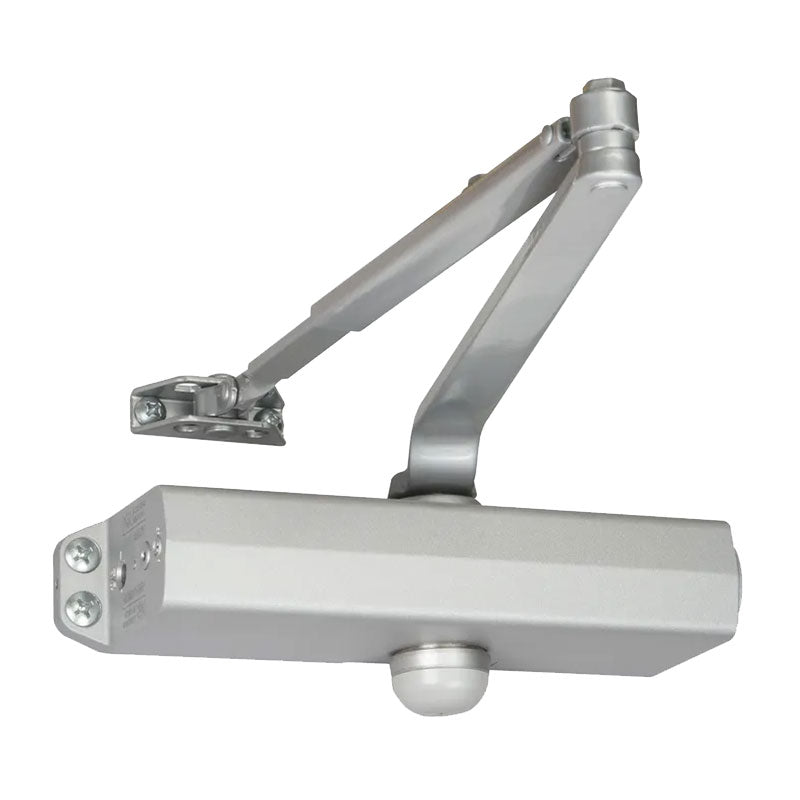

Norton 1601 Grade 1 Tri-Mount Surface Door Closer, Adjustable Size 1-6, Non-Handed

The Norton 1601 is typically used as an aluminum storefront door closer, for light to medium traffic. A staple in the industry, these ANSI/BHMA Grade-1 closers are designed for exterior or interior doors. The 1600 Series door closers offer proven quality, performance, and reliability unmatched by the competition. 1600 Series closers are ideal for virtually any medium traffic, commercial application.

  • Tri-style® packaging: regular, top jamb or parallel mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Meets requirements for Americans with Disabilities Act

codes

Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)

Templating (Hole Pattern)

3/4" x 9-1/16"

Usage

Standard Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non Handed – Completely Reversible

Speed Control

Independent latch & sweep speed controls

Backcheck

Back check intensity control standard

Valves

Staked valves to prevent backing valves out too far

Piston, Spindle, Spring

Heat treated heavy-duty steel piston, spindle and spring

Cover

None

Min. Top Rail

Regular: 3-1/8” – Top Jamb: 1-7/8” – Parallel Arm: 5-3/4”

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed for “A” Label 3 hour fire doors, UL10C positive pressure rated

Warranty

30 Years
