Global Door Controls

Global Door Controls TC4300 Door Closer

$145.28
Usually Ships:  2-3 Business Days
  • Grade 1 Certified, ANSI/BHMA A156.4
  • Adjustable Spring Size 1-6
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear
Added to Cart

Product Overview

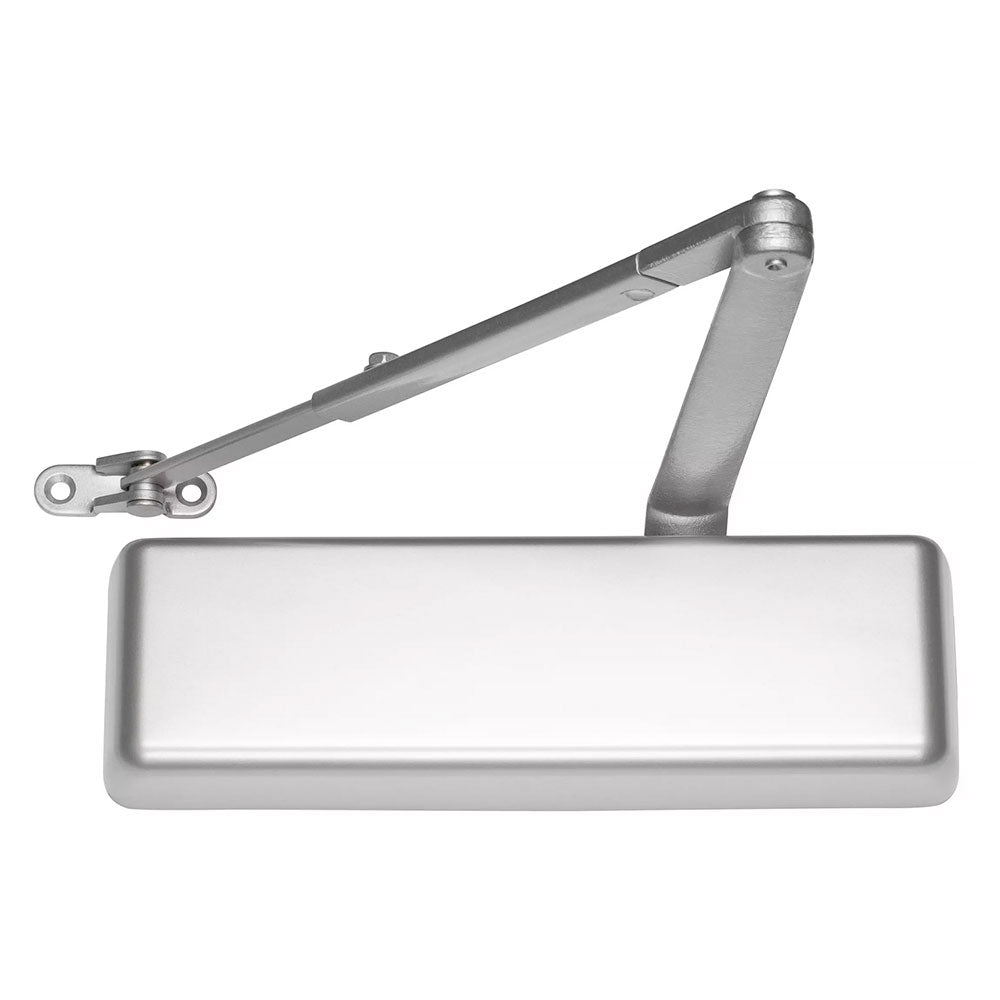

Global Door Controls TC4300 Grade-1 Institutional Door Closer, Size 1-6 Adjustable, Cast Iron Body, Regular Arm with PA Bracket, Full Cover

The Global Door Controls TC4300 series heavy duty door closers are Grade 1 certified. This series is also fully compliant with opening force requirements for ADA standards. It has a wide collection of options and installation accessories to accommodate the requirements specified in any industrial or institutional application. This closer is recommended for use on all glass and aluminum store front doors. Moreover, the spring tension is adjustable and comes in sizes 1-6. Items are available in two finishes : Aluminum and Duronodic. They carry a 5 year mechanical warranty to be the guarantee for our clients.

  • Heavy-duty, cast iron construction with adjustable spring tension
  • Adjustable control sweep, latch closing and backcheck speeds
  • Meets the performance standards of Grade 1, ANSI BHMA A156.4
  • Recommended for institutional and other high traffic demanding applications
  • Cast iron body with hardened steel rack & pinion
  • Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door
  • Supplied with both wood and machine screws
  • Fits with doors weighing up to 300 lbs.

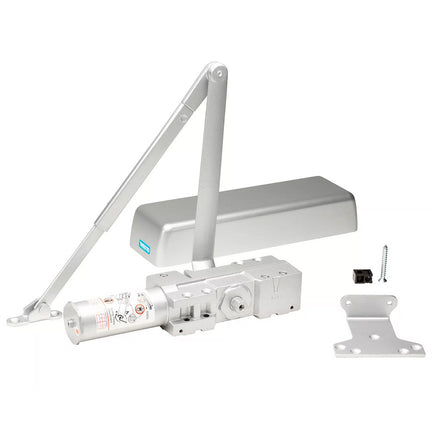

  • Tri-packed - regular pull side, top jamb, parallel arm
  • Includes three independent regulating valves - control sweep, latch closing speeds and backcheck
  • Adjustable backcheck speed
  • Includes a cover
  • CTC Hole Pattern: 2-1/4 in. x 3-1/1 in.
  • UL listed R7483
  • ADA compliant
  • 5 year mechanical warranty
Brand

Finish

Aluminum, Dark Bronze

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

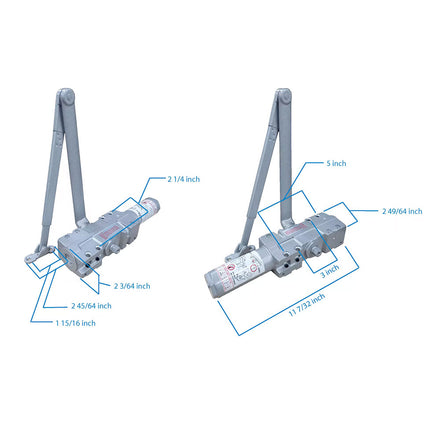

Templating (Hole Pattern)

2-1/4" x 5"

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Cover

Full Cover

Fire-Rating

UL/cUL listed

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
