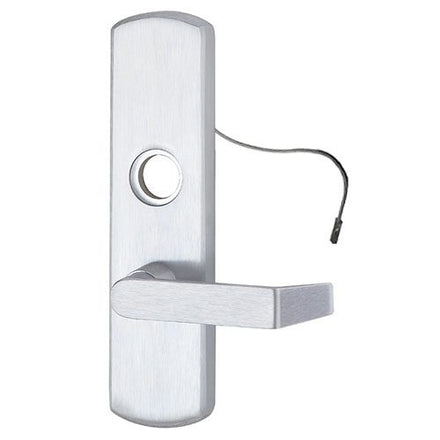

Von Duprin M996L-R/V-06 Motorized Breakaway Lever Trim for 98/99 Series Exit Device

$1,202.52
This item ships FREE! Usually Ships:  1-2 Business Days
  • For use with 98/99 Series rim or vertical rod device
  • Key locks/unlocks lever (cylinder sold separately)
  • Remote locking and unlocking capabilities

Available Options:

Clear

Product Overview

Von Duprin M996L Grade 1 Motorized Lever Trim, Cylinder Override, Less Cylinder, Rim/Vertical Rod Prep, 06 Lever Style

M996L motor driven electrified breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented vandal-resistant trim design. The motor can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim. M996 is furnished fail safe (FS) and convertible to fail secure (FSE) via dip switch.

  • Fail safe standard, can also be converted in the field to fail secure
  • Dual voltage – up to 1.12 amps @ 12 VDC, Up to .59 amps @ 24 VDC.
  • ANSI Function: 08
  • Escutcheon plate size: 2-3/4" x 10-3/4" x 27/32"
  • Projection: 2-7/8"

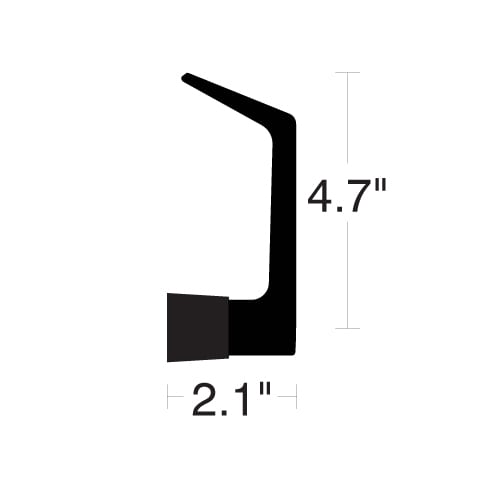

  • #06 lever style furnished standard
  • Cylinder must be ordered separately - requires 1-1/8" rim cylinder

Brand

Finishes

US26D (626) Satin Chrome, SP313 (695) Dark Bronze, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, SPBLK (693) Black

Function

Entry / Classroom

Lever Design

06

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

Solenoid

24VDC

Solenoid Draw

0.22 AMPS

ANSI Grade

ANSI Grade 1

Usage

Heavy Duty

Hand

Field reversible-shipped RHR

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Buy American Act Compliance

Meets Buy American Act - Made in USA
