Product Overview

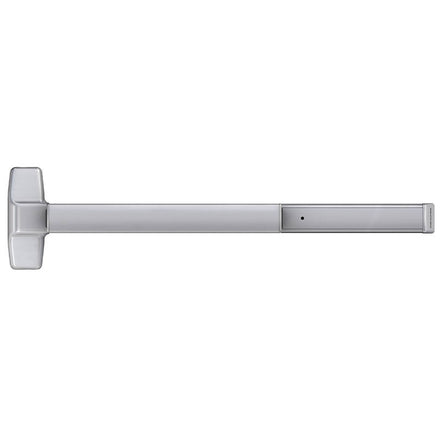

Von Duprin 7847EO Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, Panic Device, 80″ to 100″ Door Height, Exit Only, Less Trim, Hex Key Dogging
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

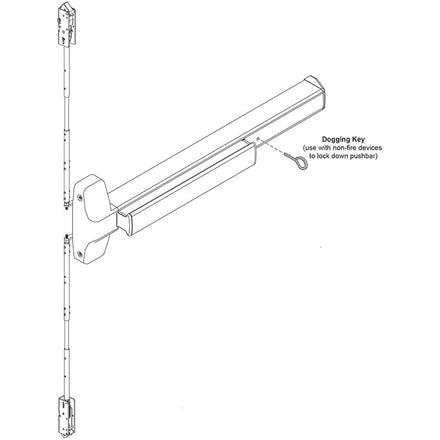

7847 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMAA156.3 2014, Grade 1.
- EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
- Standard Sizes: 3′ x 7′ (2' 4" to 3' door width), 4′ x 7′ (2' 10" to 4' door width)
- Top rod adjustable from 6'8" to 8'4"
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
| Brand | |
|---|---|
| Finishes |
643e Aged Bronze, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US28 (628) Anodized Aluminum, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, 313 Duranodic Dark Bronze, US15 (619) Satin Nickel |
| Device Type |
Concealed Rod Device |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 2014, Grade 1 Certified |
| Usage |
Heavy Duty |
| Fire-Rating |
Non-Fire-Rated |
| Vertical Rods |
Round 2-piece adjustable rods - Top rod adjustable from 6'8" to 8'4". Bottom rod adjustable 35 5/8" to 49 5/8". Extension rod kits available for doors over 8'4" |
| Hand |
Field Reversible |
| Latchbolt |
Deadlocking anti-friction top & bottom bolt, 5/8" throw |
| Strikes |

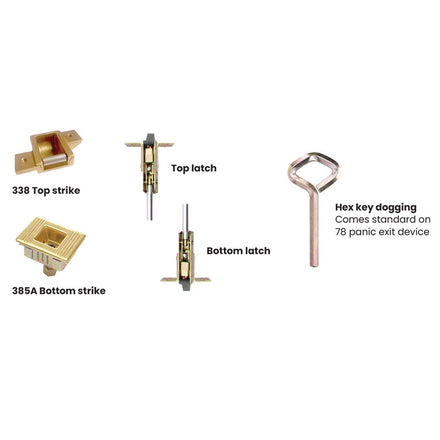

Top: 338, Bottom: 385A |
| Dogging Feature |
Half turn hex dogging standard |
| Stile Type |
Wide (Standard) |
| Center Case |
7-7/8" x 2-3/4" x 2-3/8" |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Fasteners |
Includes screws for metal and wood doors |
| Door Applications |
1-3/4" Hollow Metal Doors |
| Warranty |
3 Year |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
