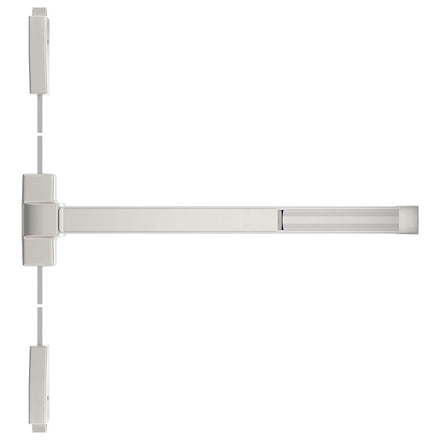

Trudoor TDE-F1000V-EO Heavy-Duty Surface Vertical Rod Exit Device, Fire Rated, Exit Only

$549.30
This item ships FREE! Usually Ships:  Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for fire and panic exit hardware

Available Options:

Clear

Product Overview

Trudoor TDE-F1000V Heavy-Duty Grade-1 Surface Vertical Rod Exit Device, Fire Rated, Exit Only, Satin Stainless Steel

TDE-1000 Series surface vertical rod exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • UL Listed for Panic Exit Hardware and Fire Hardware (up to 3 hours)
  • Designed for heavy use
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap

Sizes

  • 3'0" x 7'0" (for 2'4" to 3'0" wide door, 7'0" height)
  • 3'0" x 8'0" (for 2'4" to 3'0" wide door, 8'0" height)

ul-listed







Cross Reference

The TDE-F1000V can be specified as a substitute for: Accentra/Yale 6170F/7170F, Cal-Royal F7760V/F9860V, Corbin Russwin ED5400A, Design Hardware F1000V, Dorma F9400 B, Dormakaba/Stanley QED116, Falcon F-25-V, Hager 4501SVR-F, Marks M9900VRF, PDQ 6300VF, Precision 2200, Sargent 12-8700, Von Duprin 9827-F/9927-F

Brand

Finishes

US32D (630) Satin Stainless Steel

Size

3'0" x 7'0", 3'0" x 8'0"

Device Type

Surface Rod Device

Includes Trim

No

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards

Usage

Heavy Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

UL Listings

UL Listed for Panic Exit Hardware

Fire-Rating

UL/cUL listed up to 3 Hours

Trim

None - Exit Only (Outside Trim Sold Separately)

Dogging Feature

None

Top Latch

U shaped top latch for secure engagement with strike

Bottom Latch

Drop bolt style bottom latch secures into flat strike and hole in the floor

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Easily Re-handed in the field – Shipped as RHR

Stile Type

Wide (Standard)

Minimum Stile Width

4-1/2"

Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

Warranty

Limited Lifetime Warranty
