Trudoor

Trudoor TDE-ALK-2000R Alarmed Rim Exit Device

$293.95
Usually Ships:  2-3 Business Days
  • Helps prevent unauthorized use of an emergency exit door
  • 90db alarm – powered by standard 9-volt battery (included)
  • Alarm is activated when push bar is depressed

Available Options:

Clear

Product Overview

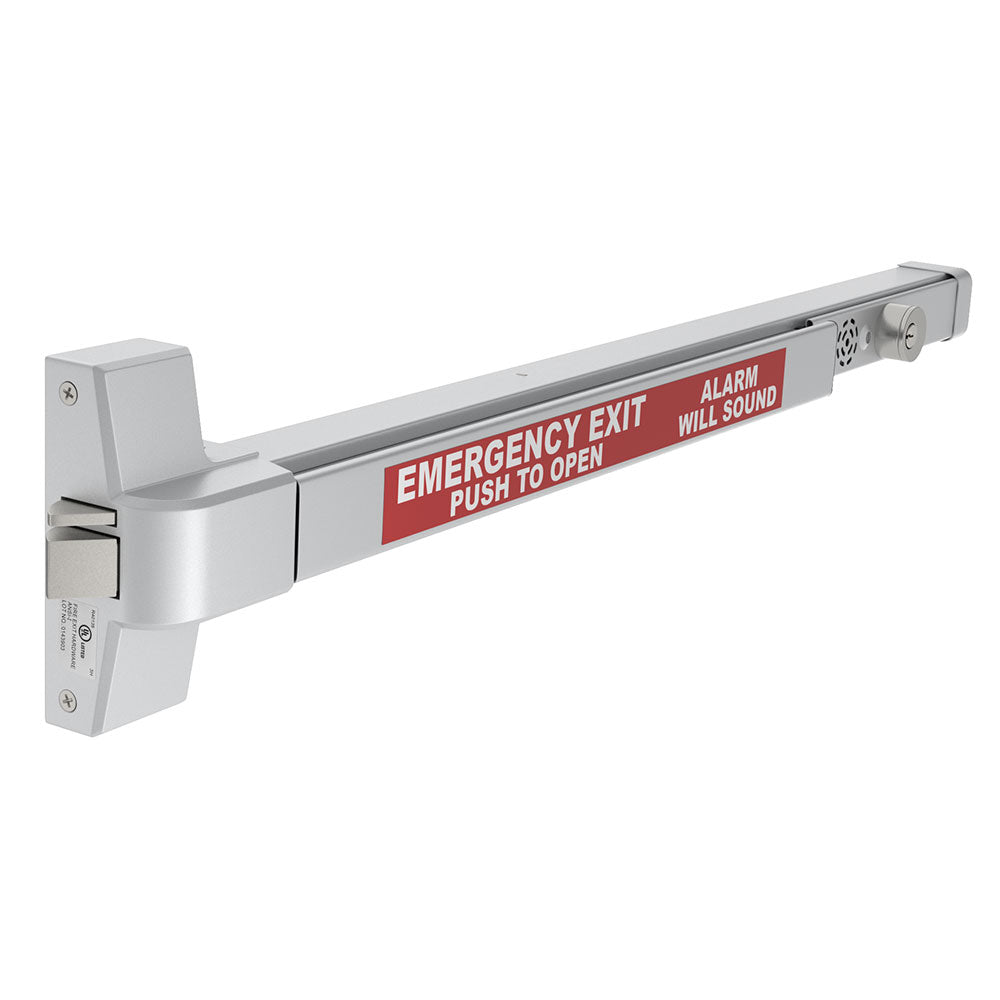

Trudoor TDE-ALK-2000R Grade-1 Rim Exit Device, Battery Powered Alarm Kit Installed, Panic Rated, Exit Only

The TDE-ALK-2000R is designed for primary and secondary exits that require an alarmed panic device. A 90-decibel alarm will sound when someone attempts to exit, alerting management to the unauthorized exit.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • 5/32” hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • UL Listed for Panic Exit Hardware

ALK Alarm Kit

  • Factory installed
  • Alarm is armed/disarmed by turning key in the mortise cylinder (cylinder included – Schlage C keyway)
  • LED flashes green every 30 seconds to indicate alarm is in armed position
  • Alarm is activated when push bar is depressed
  • Alarm can be bypassed by trim/key from the outside
  • 9 Volt battery, life approximately 1 year – Low battery alert indicated by red flash & chirp every 5 seconds
  • Decibel Rating: Approximately 90 decibels at 15 feet
  • Includes 9-Volt Battery and “Emergency Exit” Sticker for touchpad or door face

ul-listed





Brand

Finishes

AL - Aluminum, BLK - Matte Black

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

Electric Options

Alarm Kit

Cylinder

1-1/8″ Mortise Cylinder with Straight Cam (included) – 6-Pin, Schlage C Keyway, Includes Two Keys

Includes Trim

No

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

UL Listings

UL Listed for Panic Exit Hardware

Fire-Rating

None

Trim

None - Exit Only (Outside Trim Sold Separately)

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

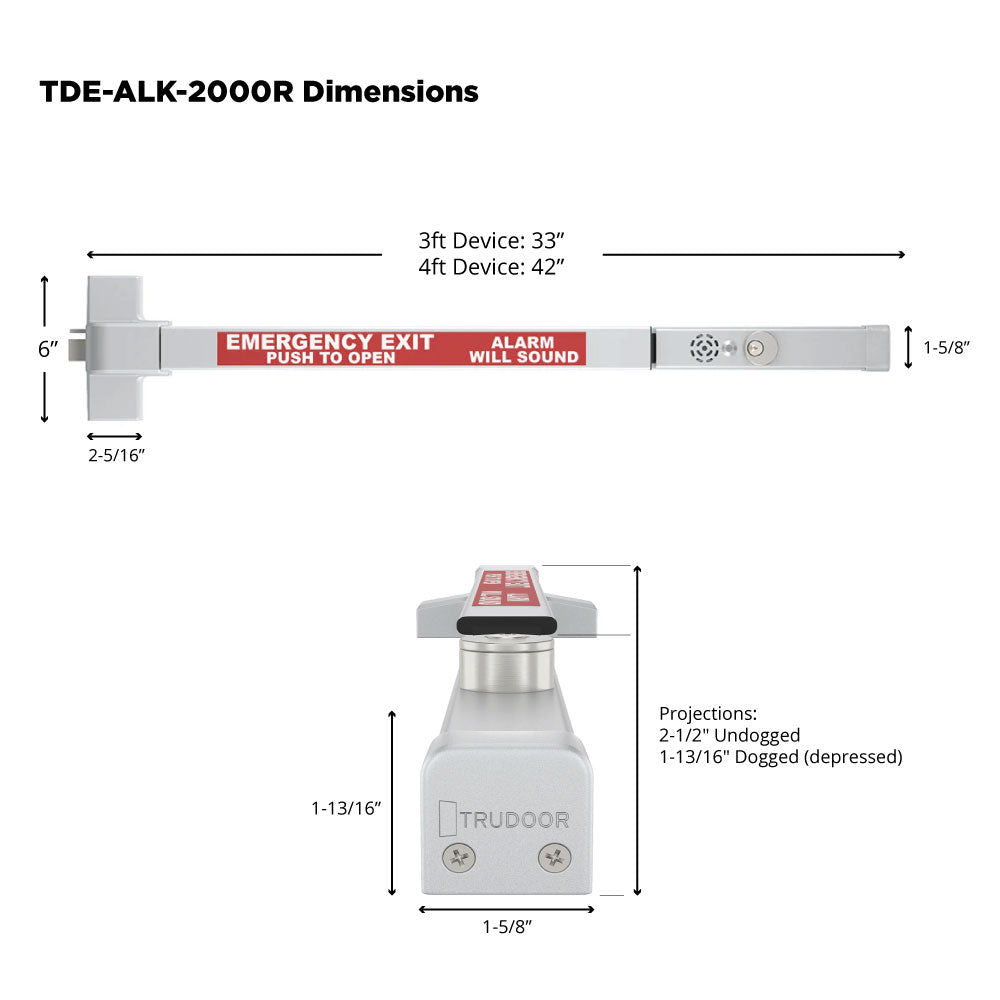

Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick

Mechanism Case

1-5/8″ Height x 1-13/16″ Wide

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
