Trudoor TD-PULLP ADA Pull Plate - 4" x 16" with 3/4" Round Pull, 8" CTC

$40.98

Usually Ships: Same Day

Meets ANSI A156.06: J405 standards

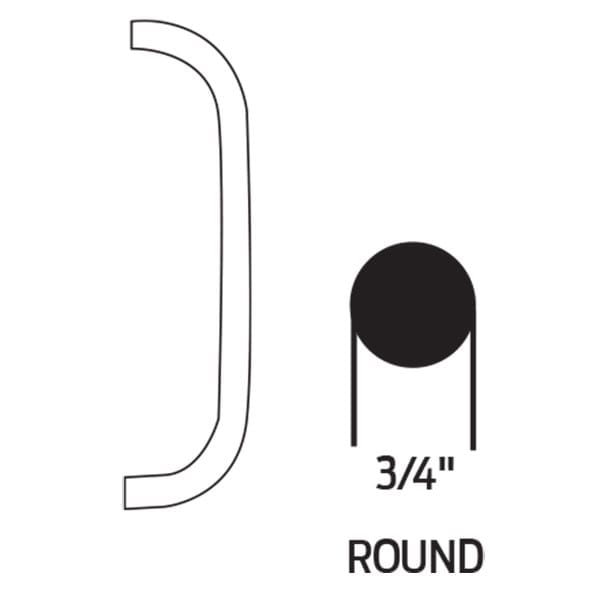

3/4" diameter round pull, 8" CTC, 4" x 16" plate
ADA compliant, 1-7/8" clearance

Available Options:

Clear

Finish

Quantity:

Added to Cart

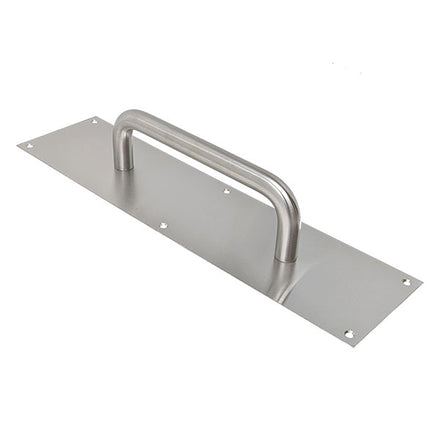

Trudoor TD-PULLP Pull Plate, 4″ x 16″, 3/4" Diameter Round Pull, 8" CTC

TD-PUSH push plates can be installed on metal or wood doors.

Meets ANSI A156.06: J405
ADA compliant, 1-7/8" clearance from plate to handle
2-5/8" projection
Includes mounting hardware for 1-3/4" thick door
Includes countersunk holes
For use with hollow metal doors and wood doors
Material: Stainless Steel
Finishes: US32D Satin Stainless Steel and BLK Flat Black

Cross Reference

TD-PULLP can be specified as a substitute and/or replacement for: Cal-Royal 1003ADA, Burns 5425B, Design Hardware PULLP-416, Don-Jo 7116, Hager 33g, Ives 8302-8, PDQ 86-3-2D, Rockwood 107X70C, Tell DT100148, Trimco 1017-3B

Brand	Trudoor
Finishes	US32D (630) Satin Stainless Steel, BLK Black
Plate Size	4" x 16"
Pull Diameter	3/4"
Center to Center (CTC)	8"
ANSI/BHMA Standard	Meets ANSI A156.06: J405
Door Thickness	1-3/4"
Warranty	Limited Lifetime Warranty
